Universal Underdash A/C Kit 404 12V Chrome Finish Premium Evaporator 2A-V BELT

🇺🇸 We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.🇺🇸

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

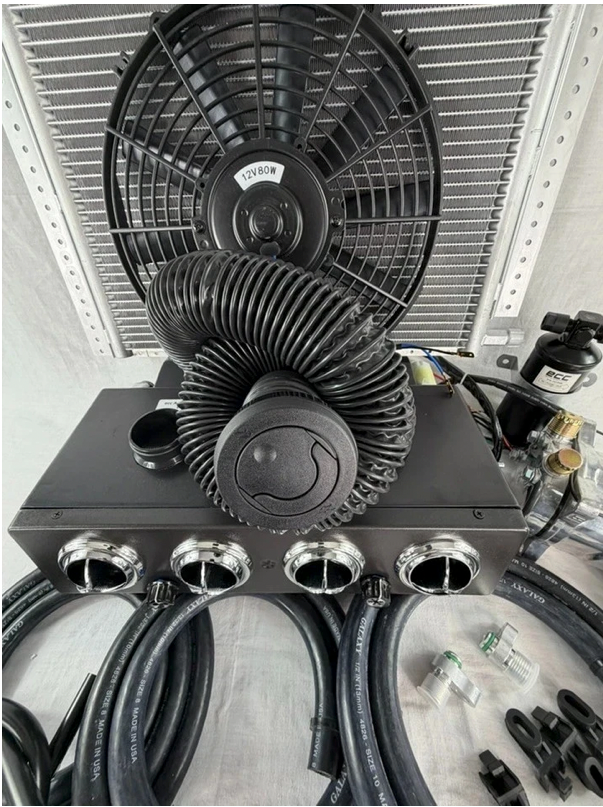

Universal A/C Kit for Classic Cars, Hot Rods, Antique Cars, Trucks & More

Top-Quality Automotive A/C Parts

Evaporators, Compressors, Condensers & More

Upgrade your ride with a full-featured climate-control system! Our universal A/C & heat kit fits a wide variety of classic cars, hot rods, antique trucks and more — whether your vehicle came without A/C or you’re doing a full restoration.

• Includes both cooling and heating functionality (“heat & cool”) so you’ll stay comfortable year-round.
• Compatible with most 12-volt automotive systems.
• BELT DRIVE A/C COMPRESSOR
• Designed for under-dash or retrofit installation in older vehicles, street rods and project builds.
• Comes with detailed installation guidelines and access to tech support  to help you through the process.
• Nationwide shipping from Florida — add your preferred size/length options; custom lengths / special configurations available for an extra charge.
• We strongly recommend installation by a certified professional.

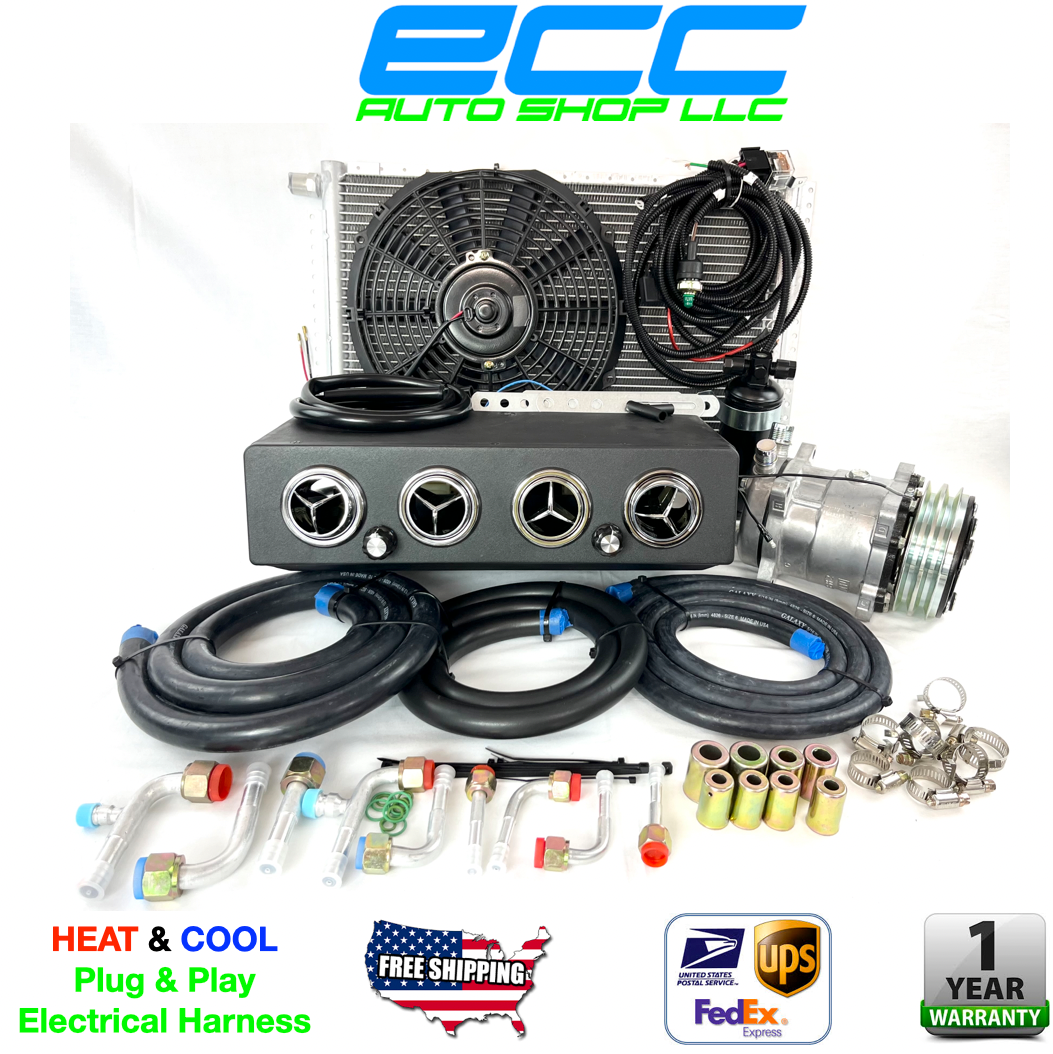

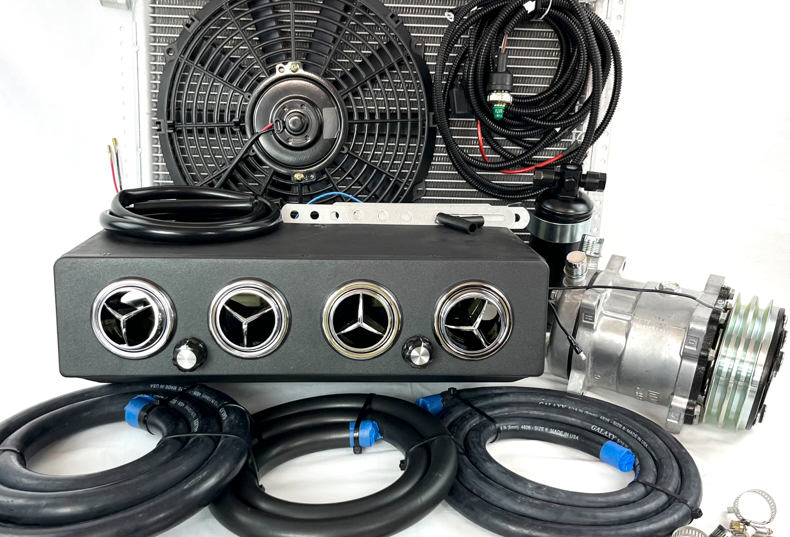

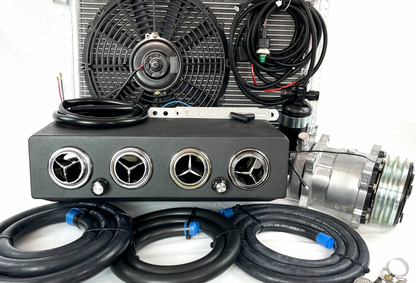

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR HEAT & COOL 404-000 CSL ELECTRICAL HARNESS

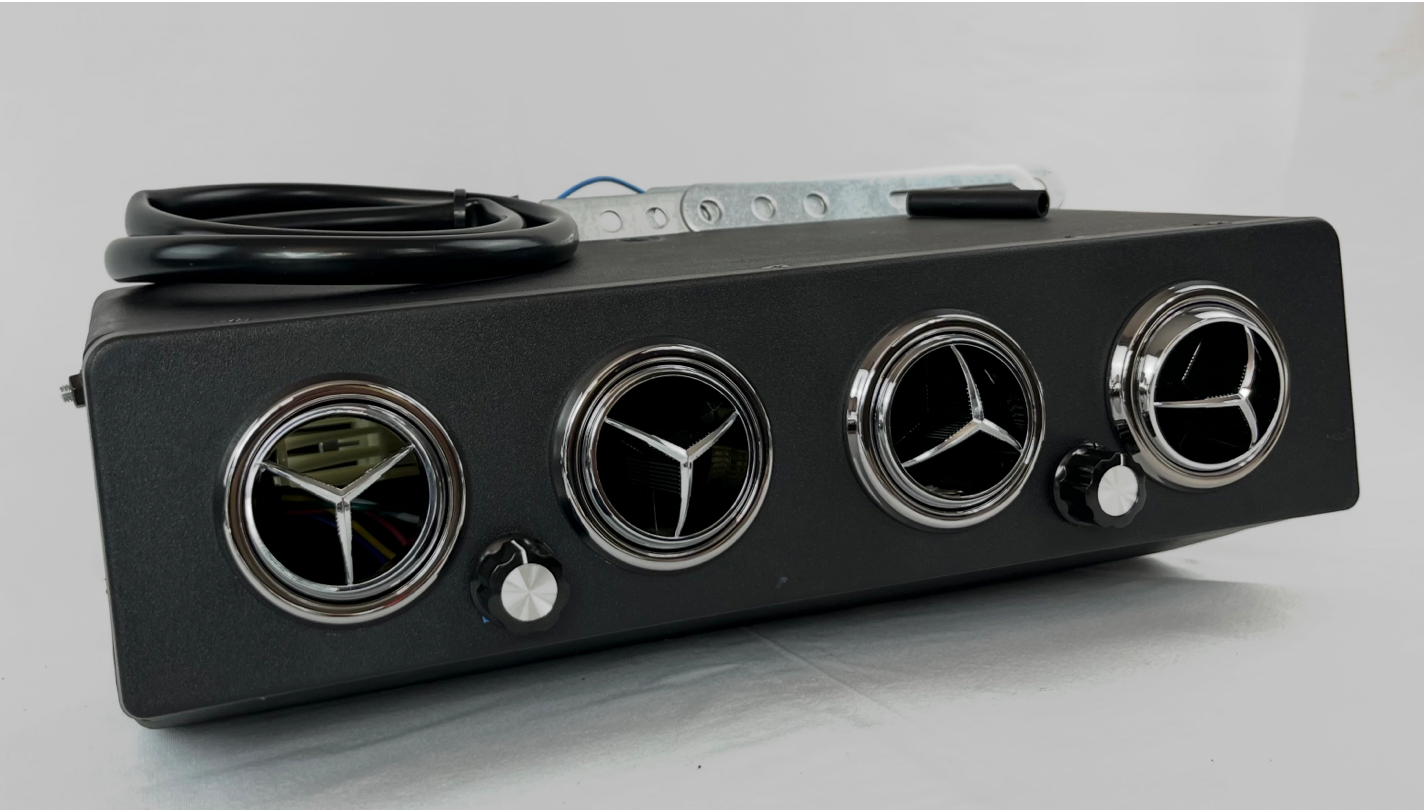

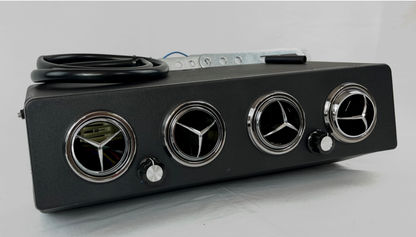

Universal Under-Dash Evaporator Unit

Model: E-404-000 CSL H/C.

Heat & Cool

32 pass 4way all aluminum coil

Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included 12,700 BTU capacity 359 CFM

DIMENSIONS: L15¾" X D11½" X H6"

FRONT 4 CHROME STAR LOUVERS  WITH CHROME KNOBS

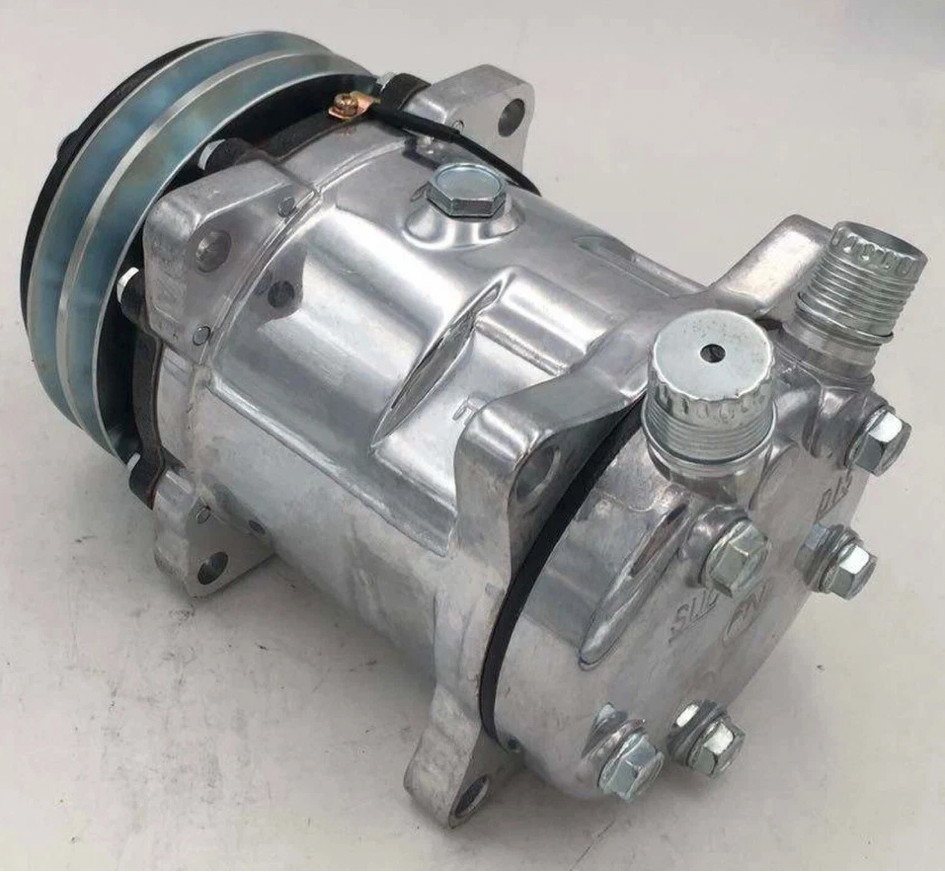

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style  2A Groove Pulley 12v coil

Also available 8PK Pulley

100% Electric Compressor Available (Extra Cost).
Please contact us before making your purchase for details and compatibility.

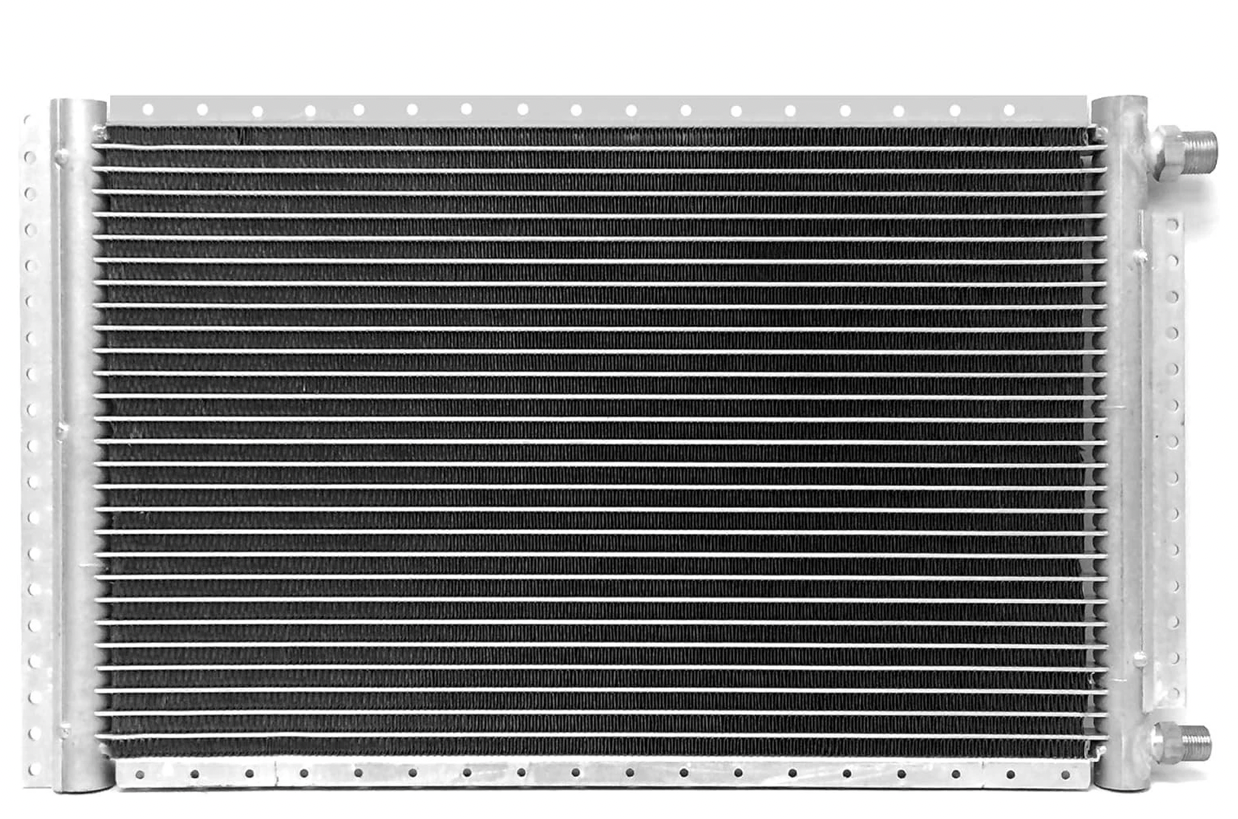

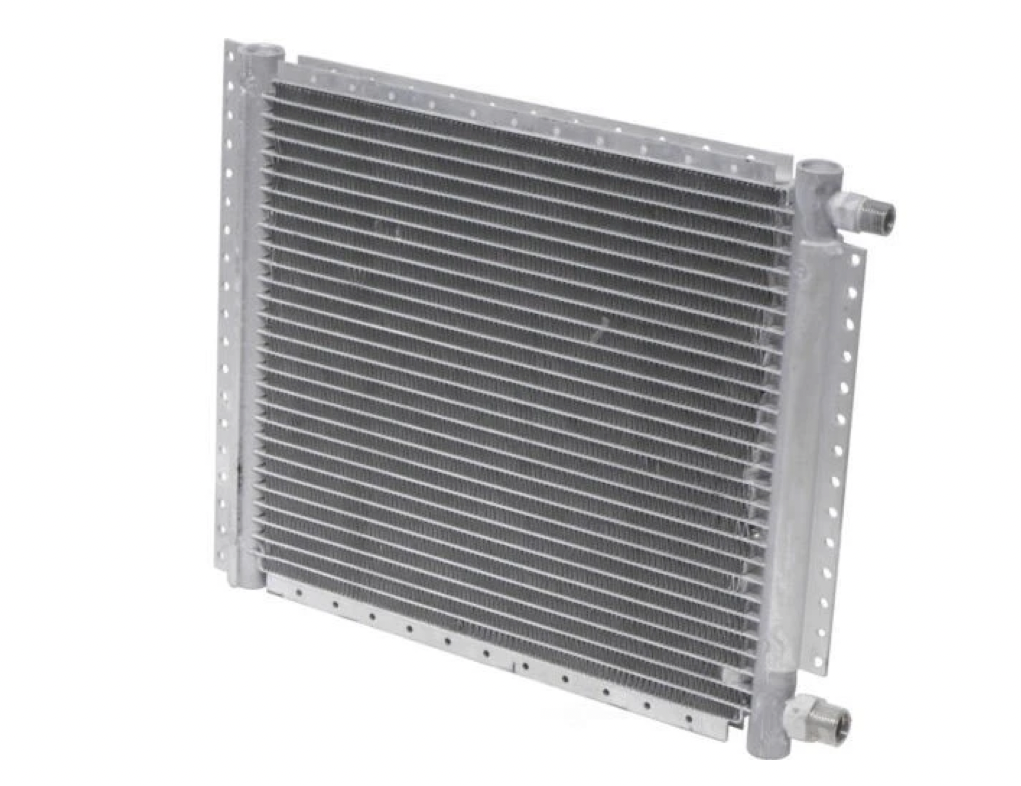

Condenser

Model: CPF142018

PARALLEL FLOW (micro-tube technology)

14"H X 20"L .70"(18mm)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

Many more sizes available. Please call our tech support if you’re looking for a different one

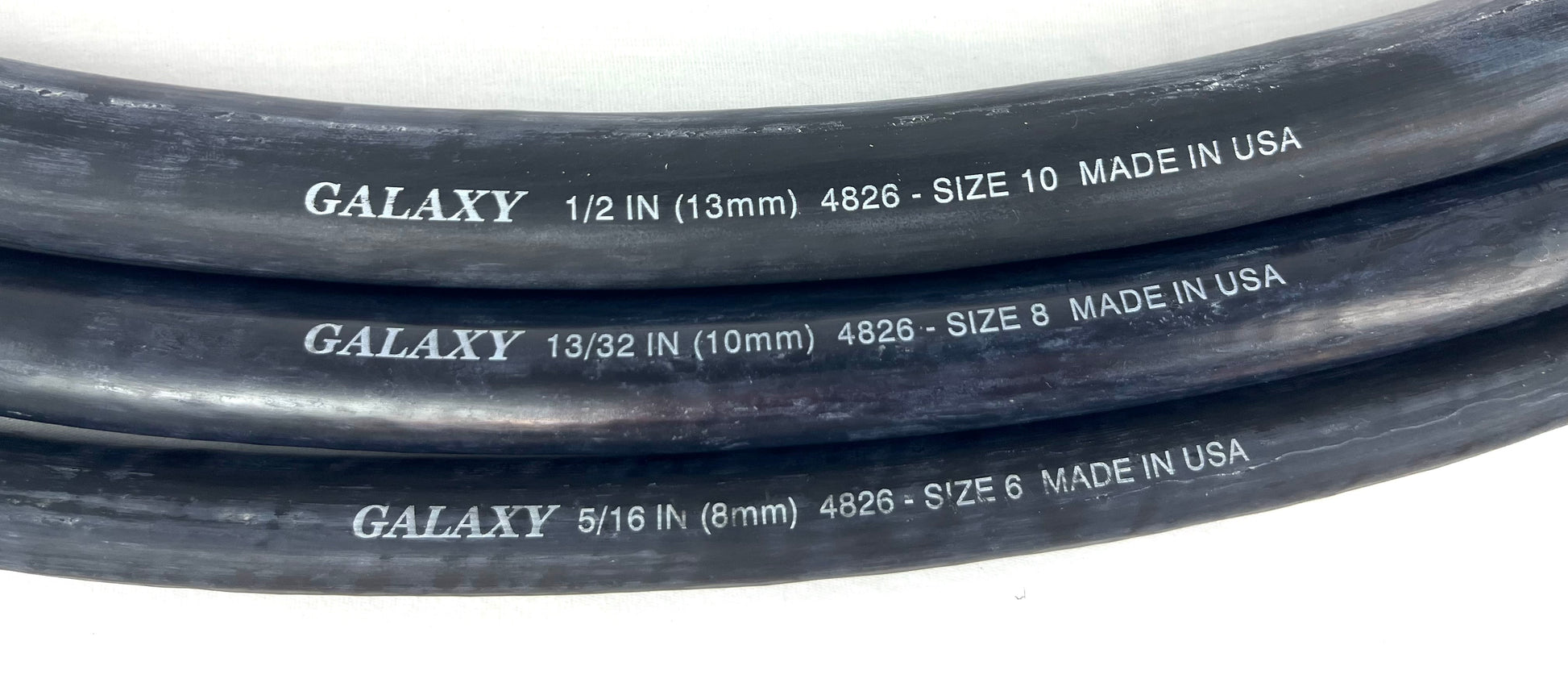

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 6'feet
• #8 13/32 = 4'feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

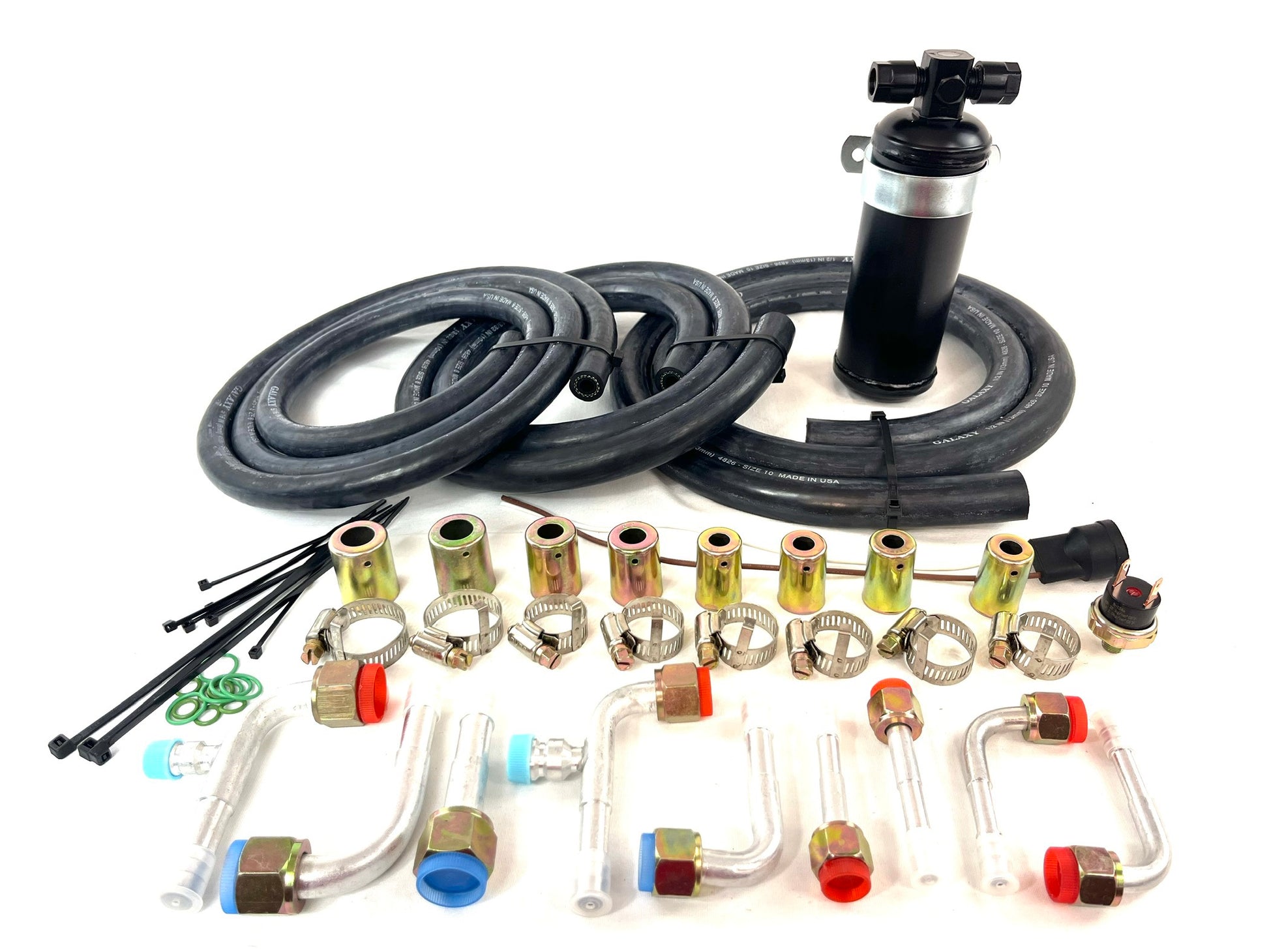

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

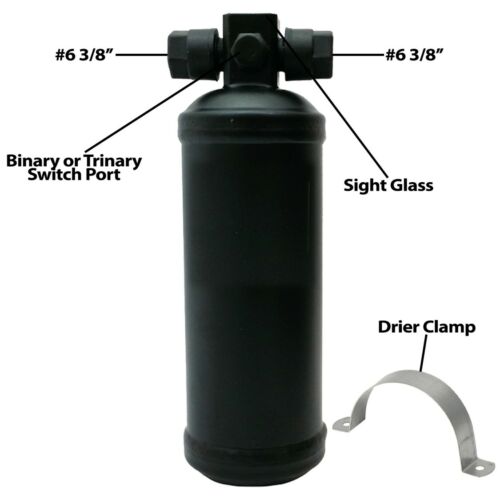

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

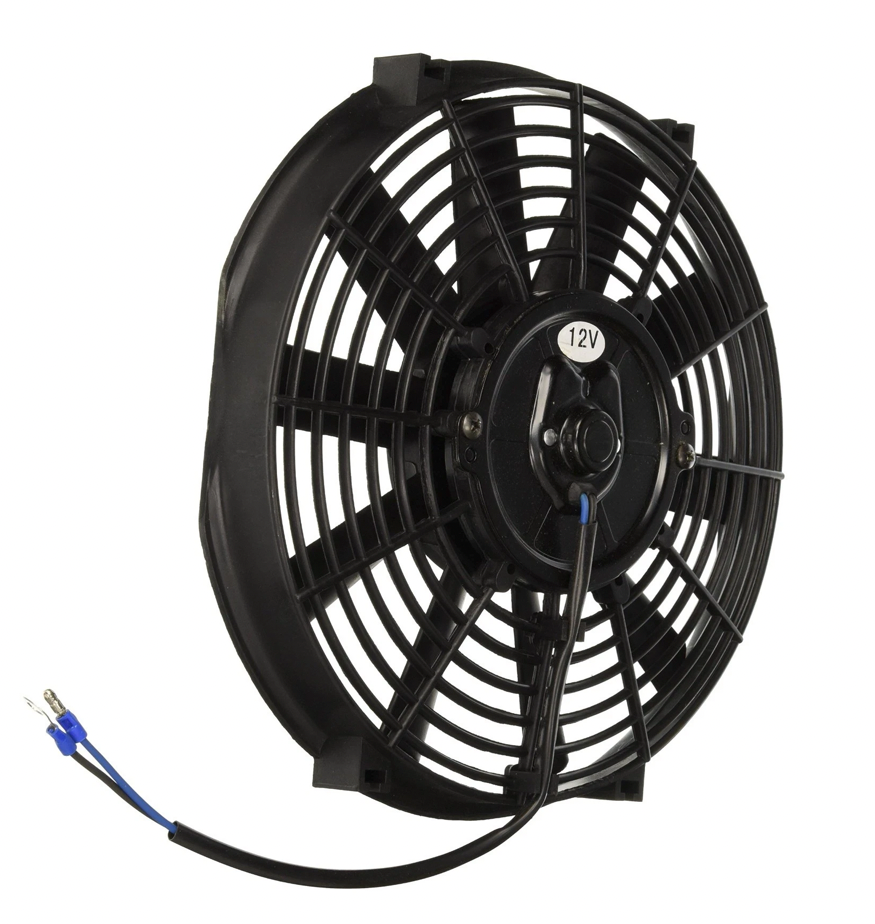

Condenser Fan

Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

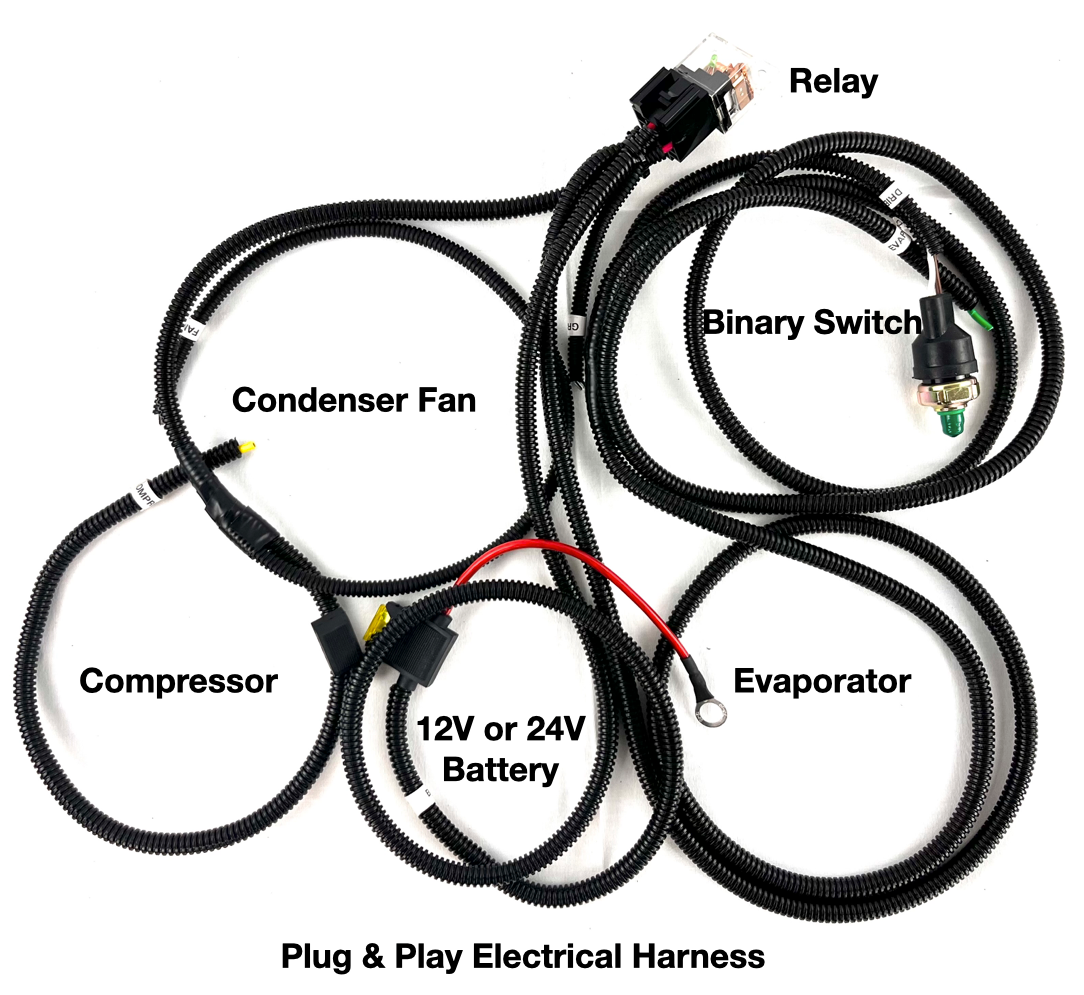

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL

727-687-6769

Located in Florida USA.

Nationwide FREE shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days.

NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately. We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
