UNIVERSAL A/C KIT FOR: BIG CARS, CLASSIC CARS, HOT RODS, ANTIQUE CARS, TRUCKS, AND MORE.
THE KIT INCLUDES:
A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 450-000 DDCL H/C
HEAT & COOL
12V WITH FULL PLUG & PLAY ELECTRICAL HARNESS
Model: E-450-000
HEAT AND COOL
36 pass 4way all aluminum coil
Expansion valve 1.5 Ton
Thermostat and rotative 3-speed blower switch
12 VOLTS DOUBLE SHAFT BLOWER MOTOR
Mounting bracket drain hose and T included
22,220 BTU capacity 359 CFM
20,000 BTU heater
DIMENSIONS: L17" X D13½" X H6½"
Compressor
Also available 8PK Pulley
Condenser
Model: CPF1420
PARALLEL FLOW (micro-tube technology)
14"H X 20"L (20mm)W
4 Rails Aluminum
#8 O-ring IN #6 O-ring OUT
Hoses Set
Model: H6516,H81332, H1012
A/C HOSE
- #6 5/16 = 9'feet
- #8 13/32 = 5'feet
- #10 1/2 = 8' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
Fitting Set
Model: FTSET404
-
1-N° 10 90° O-ring Fitting w/R134a Service Port
- 1- N° 8 90° O-ring Fitting w/R134a Service Port
- 1- N° 10 Straight O-ring Fitting
- 1- N° 10 90° O-ring Fitting
- 2- N° 6 90° O-ring Fitting
- 1- N° 8 90° O-ring Fitting
- 2- N° 6 Straight O-ring Fitting
- Set include metal FERRULES and CLAMPS
If you decide to use a/c clamps you don't need a special crimper tool
(YES... We include both systems)
O-ring set is included
Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Height Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides
(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message

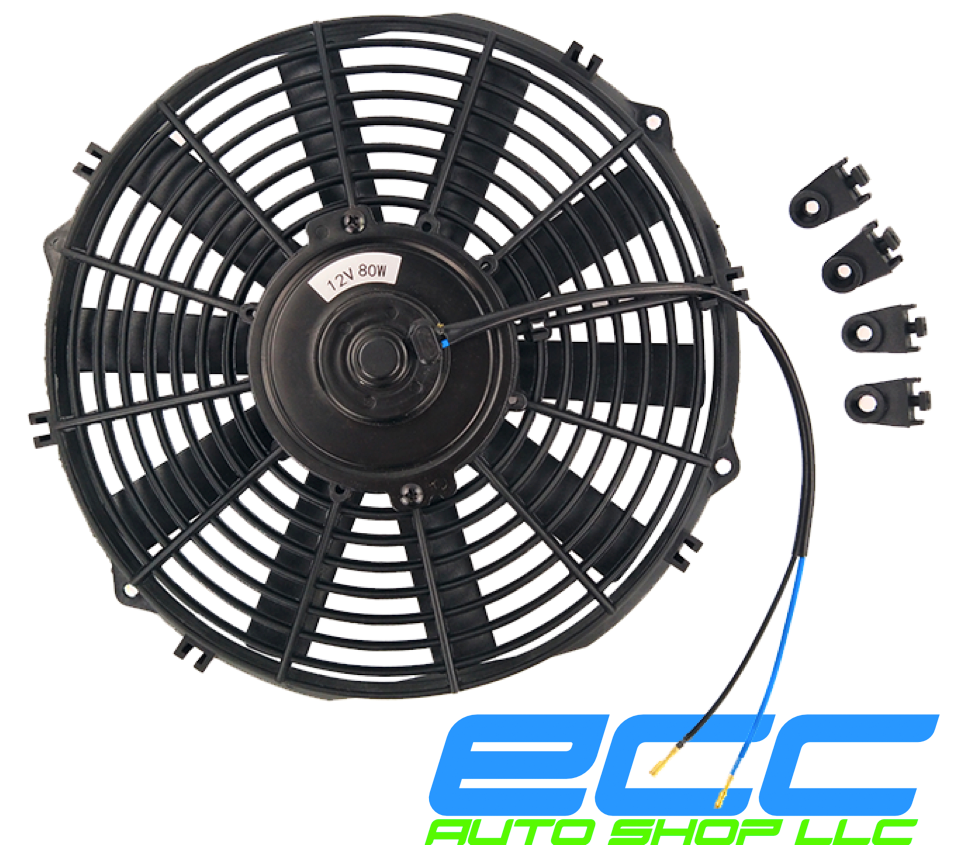

Condenser Fan
Model: CF1214
14" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
Electrical Harness
all our kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or truck applications. for special Lengths applications please contact us extra charges maybe apply
FAQ.... Please contact us we will be happy to help you make the best decision
SE HABLA ESPAÑOL Located in Florida USA. Nationwide FREE shipping
