A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 450-000 DDCL

COOL ONLY

12V WITH FULL PLUG & PLAY ELECTRICAL HARNESS

UNIVERSAL A/C KIT

For Big Cars, Classic Cars, Hot Rods, Antique Cars, Trucks, and More

✅ KIT INCLUDES:

Universal Under Dash Evaporator – Model: E-450-000

• Cool Only

• 12V Plug & Play Electrical Harness

• 36-pass, 4-way all-aluminum coil

• 1.5 Ton Expansion Valve

• Built-in Thermostat & 3-Speed Rotary Blower Switch

• 12V Double Shaft Blower Motor

• Includes Mounting Bracket, Drain Hose, and T-Connector

• BTU Capacity: 22,220 BTU

• Airflow: 359 CFM

• Dimensions: L17" x D13.5" x H6.5"

Compressor – Model: C5H142A12V

(SD508 5H14 Style)

• Sanden Style with 2A Groove Pulley

• 12V Coil

• Optional: 8PK Serpentine Pulley (Contact us for special requests)

Condenser – Model: CPF1420

• Parallel Flow (Micro-tube Technology)

• Size: 14"H x 20"L x (20mm)W

• 4-Rail Aluminum Design

• #8 O-ring Inlet / #6 O-ring Outlet

Hose Set – Models: H6516, H81332, H1012

• #6 (5/16") – 9 ft

• #8 (13/32") – 5 ft

• #10 (1/2") – 8 ft

Need extra hose? Just let us know. Additional charges may apply.

Fitting Set – Model: FTSET404

Includes:

• (1) #10 90° O-ring Fitting with R134a Service Port

• (1) #8 90° O-ring Fitting with R134a Service Port

• (1) #10 Straight O-ring Fitting

• (1) #10 90° O-ring Fitting

• (2) #6 90° O-ring Fittings

• (1) #8 90° O-ring Fitting

• (2) #6 Straight O-ring Fittings

• Includes Metal Ferrules and Clamps

Includes both crimp and clamp systems – no special tools required!

• O-Ring Set Included

Filter Drier

• Models: FD100A (Aluminum) or FD100B (Black)

• Size: 2.5" Diameter x 7.5" Height

• Sight Glass

• #6 (3/8") O-ring Connections (Both Sides)

• Includes Hi/Low Binary Pressure Switch & Harness Connector

Let us know your color preference (Aluminum or Black) when ordering.

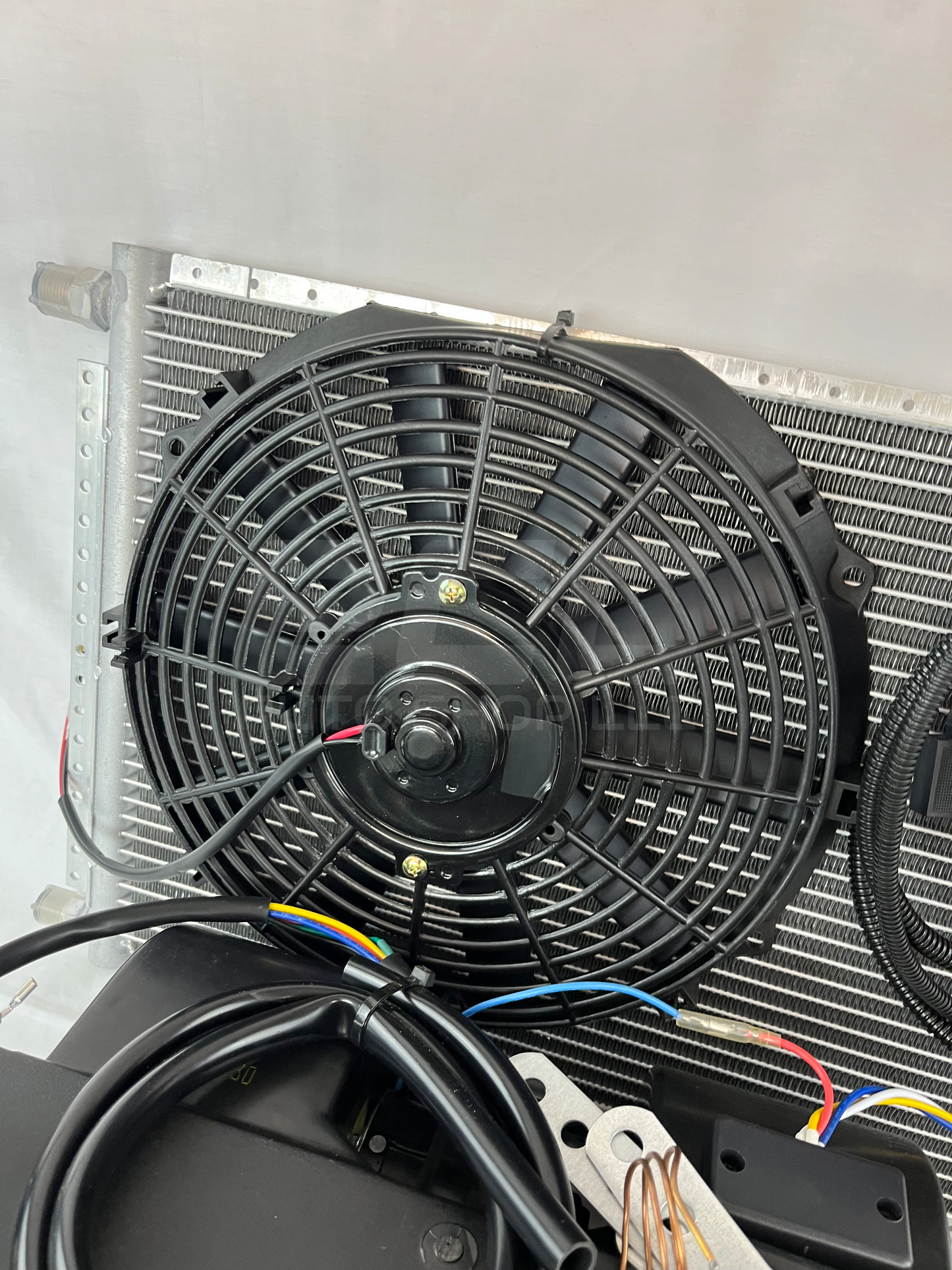

Condenser Fan – Model: CF1214

• 14" Diameter

• 12V / 80W / 6 AMP

• Reversible – Can be used as Puller or Pusher

• Includes 4 Mounting Brackets

Electrical Harness

• All kits come with a complete Plug & Play harness

• Designed for standard car/truck applications

Custom length requests are welcome – additional charges may apply
