NEW A/C-KIT UNIVERSAL HEADLINER CEILING EVAPORATOR ELECTRIC COMPRESSOR

NEW A/C-KIT UNIVERSAL HEADLINER CEILING EVAPORATOR ELECTRIC COMPRESSOR

$617.00 USD
$617.00 USD
Sale Sold out
ECC AUTO SHOP LLC
⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️
12 VOLTS DC WITH ELECTRICAL HARNESS

Automotive Overhead Air Conditioning Internal Ceiling Evaporator Assembly 12V

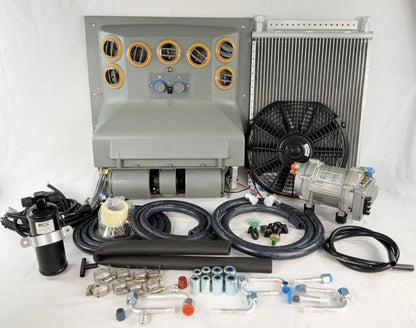

A/C KIT UNIVERSAL HEADLINER EVAPORATOR

12V WITH ELECTRICAL HARNESS

MODEL NAME: A/C KIT AC BEU-G515-12V

Universal HEADLINER Evaporator Unit

Model: G515-12V
Cool Only
32 pass 4way all aluminum coil
Expansion valve 1.5 Ton
Thermostat and rotative 3-speed blower switch
SERVICE READING LIGHT W/ SWITCH
12 VOLTS DOUBLE SHAFT BLOWER MOTOR
Mounting bracket drain hose and T included
20,000 BTU capacity 480 CFM

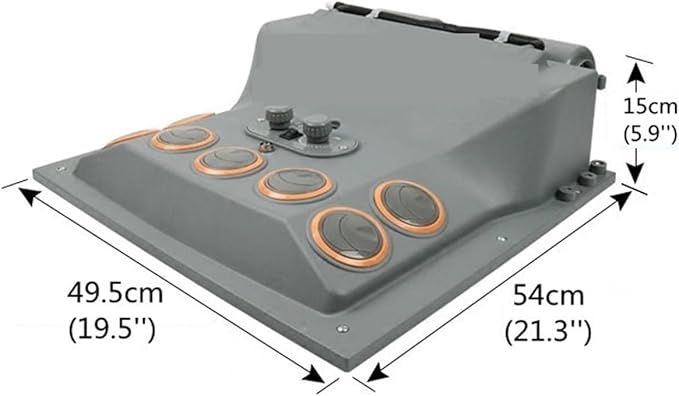

DIMENSIONS: L19½" X D21½" X H6"

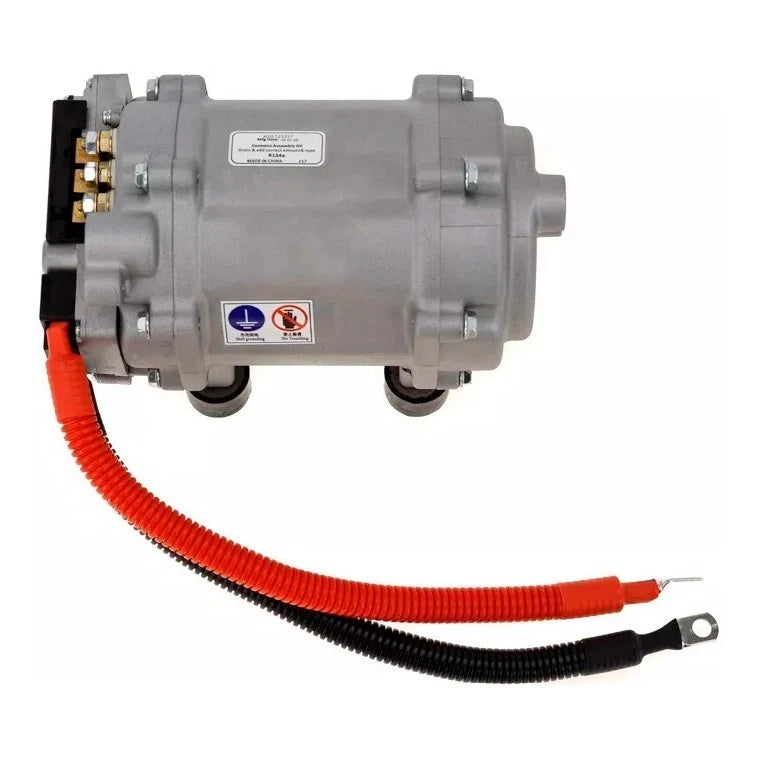

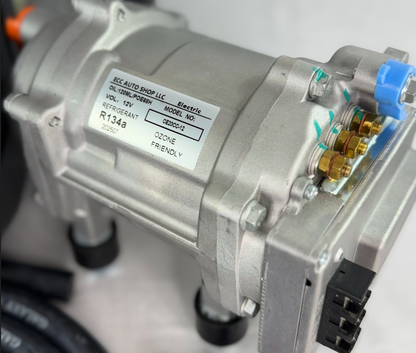

Compressor

MODEL: CE20CC-12

Compressor
⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️
12 VOLTS DC WITH ELECTRICAL HARNESS

Model: CE20CC-12
Compressor Model: CE20CC-12
Compressor type Integrated electric scroll compressor
Suitable refrigerant R134a
Compressor displacement 20cc/r
Oil injection quantity RL68H(POE)/120ml(or according to customer requirements)
Compressor driver Integrated
Motor type Permanent magnet DC speed regulating synchronous motor
Drive control Equipped with special controller
Insulation class Grade F
Total mass(oil) 4.7kg
Cooling mode Suction refrigerant cooling
Suction diameter/seal φ18.3/O ring radial seal
Exhaust port diameter/seal φ15.5/O ring radial seal
Speed range 1500 rpm~2300 rpm
Withstand Seal pressure 3.5MPa
pressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)
Class of protection IP67 (compressor connectors and docking parts used together)

✅ Recommended Alternator  120 AMP IDLE SPEED ✅



Also available BELT DRIVE:
Model: C5H142A12V SD508 5H14
Sanden Style 8PK SERPENTINE Pulley  12v coil

CONTACT US FOR SPECIAL ORDER

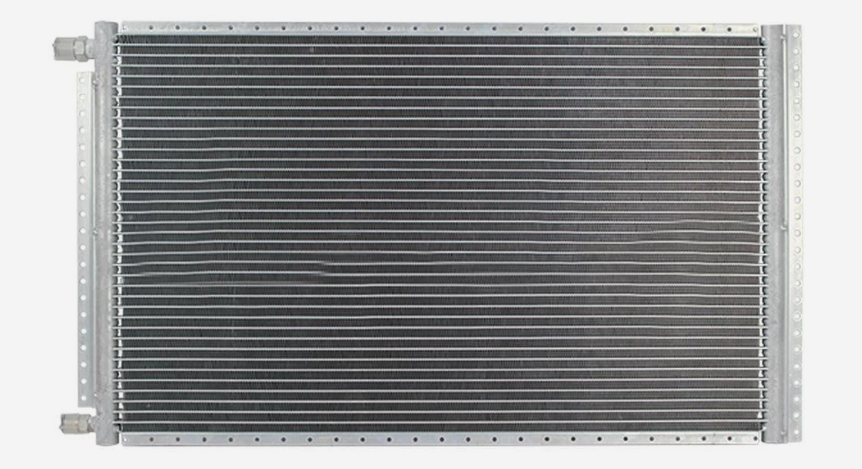

Condenser
CLASSIC CAR  APPLICATION
HOT ROD STYLE
14"H x 18"L

Model: CPF141820
PARALLEL FLOW (micro-tube technology)
14"H X 18"L .70"(20mm Core Depth)W
4 Rails Aluminum
#8 O-ring IN  #6 O-ring OUT

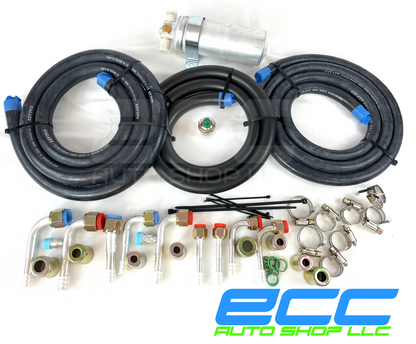

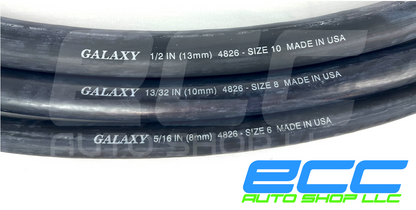

Hoses Set
Model: H6516,H81332, H1012
A/C HOSE
  • #6 5/16 = 16' feet
  • #8 13/32 = 7 'feet
  • #10 1/2 = 16' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set
Model: FTSET404
  • 1-N° 10 90° O-ring Fitting w/R134a Serv Port
  • 1- N° 8 90° O-ring Fitting w/R134a Serv Port
  • 1- N° 10 Straight O-ring Fitting
  • 1- N° 10 90° O-ring Fitting
  • 2- N° 6 90° O-ring Fitting
  • 1- N° 8 90° O-ring Fitting
  • 2- N° 6 Straight O-ring Fitting
  • Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool
(YES... We include both systems)
O-ring set is included

Filter Drier
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

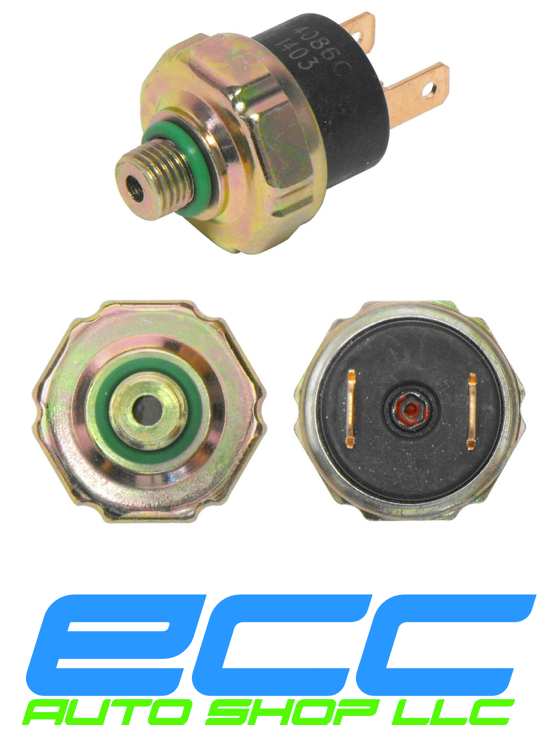

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)

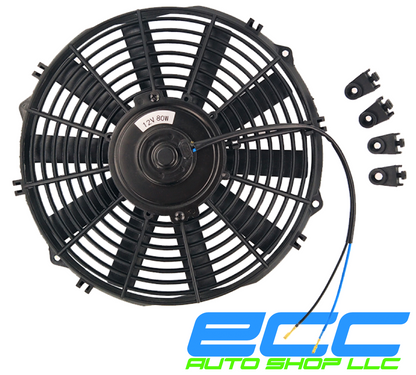

Condenser Fan
Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

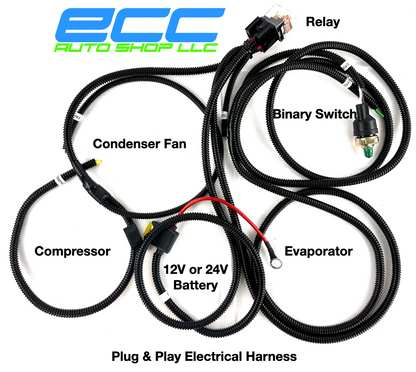

Electrical Harness
all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

 Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

NOTE: Gas R134a, compressor mounting bracket is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.
