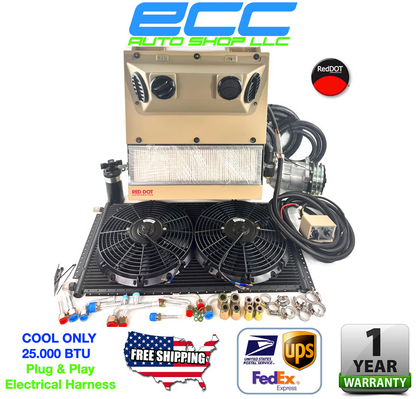

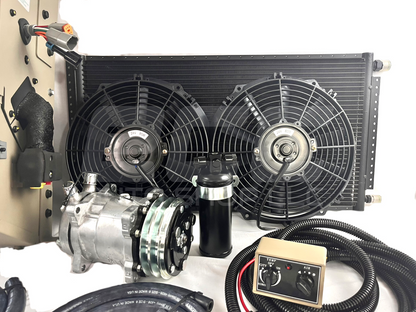

APPLICATION:

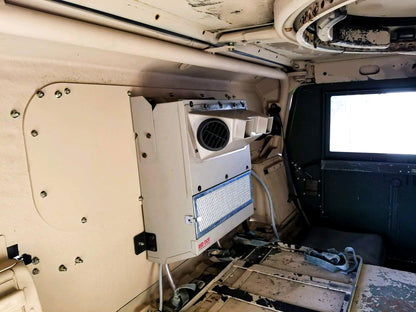

HMMWV M998 SOFT TOP SLANT OR SIMILAR

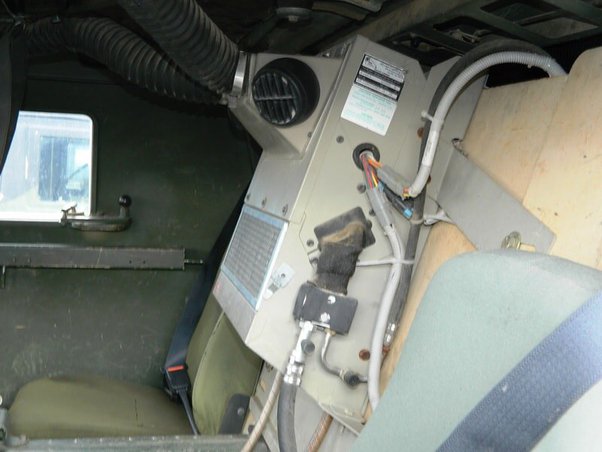

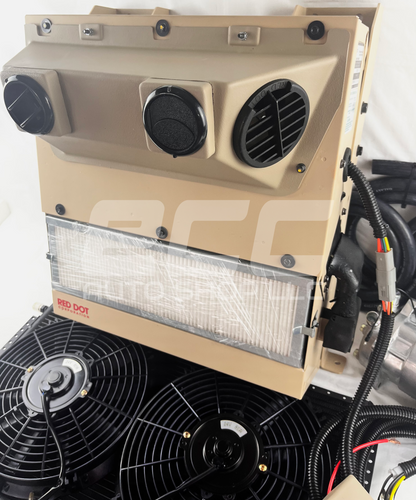

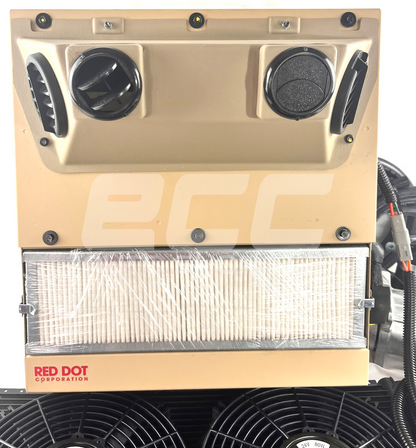

OEM RED DOT Backwall Evaporator Unit
Model: RED DOT. R-2400-0 RD-2-4369-1
Backwall OEM RED DOT Unit
Cool Only Capacity 25.000 BTU
Expansion valve Block type w/Insert male fitting include
Thermostat and rotative 3-speed blower switch
24 VOLTS DOUBLE SHALF BLOWER MOTOR SPAL 708 CFM
Mounting bracket included
DIMENSIONS: L18½" X D8½" X H21½"
Compressor
Also available 8PK Pulley
Condenser
Model: CPF142618
PARALLEL FLOW (micro-tube technology)
14"H X 26"L .70"(18mm)W
(Better fit in front of the radiator, better flow air with x2 12" 80w condenser fan)
4 Rails Aluminum
#8 O-ring IN #6 O-ring OUT

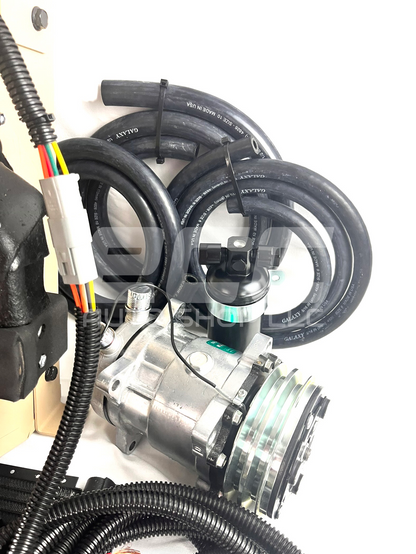

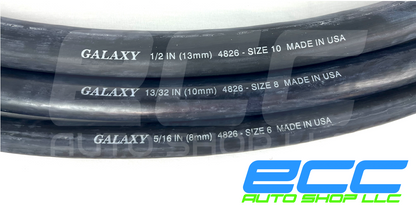

Hoses Set
Model: H6516,H81332, H1012
A/C HOSE
- #6 5/16 = 17' feet
- #8 13/32 = 8' feet
- #10 1/2 = 14' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

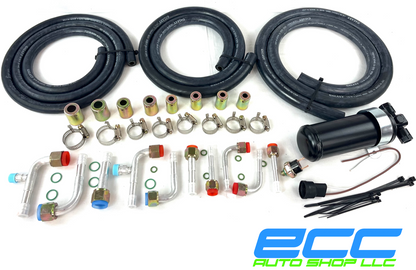

Fitting Set
Model: FTSET404
-
1-N° 10 90° O-ring Fitting w/R134a Serv Port
- 1- N° 8 90° O-ring Fitting w/R134a Serv Port
- 1- N° 10 Straight Insert Male O-ring Fitting
- 1- N° 6 Straight Insert Male O-ring Fitting
- 1- N° 10 Straight O-ring Fitting
- 1- N° 10 90° O-ring Fitting
- 2- N° 6 90° O-ring Fitting
- 1- N° 8 90° O-ring Fitting
- 2- N° 6 Straight O-ring Fitting
- Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool
(YES... We include both systems)
O-ring set is included

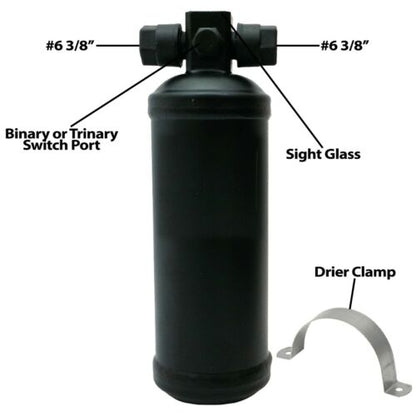

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

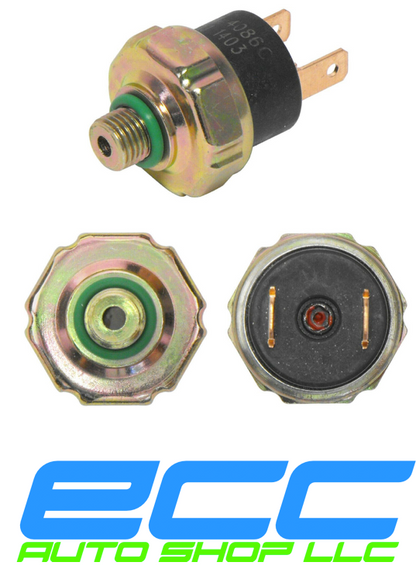

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message

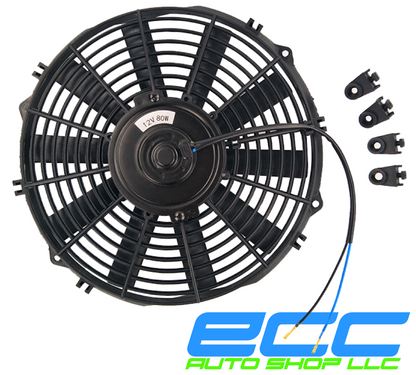

Condenser Fan
Model: CF1224
2x12" Diameter
24 Volts 80W 3.5 AMP <75db 1680 CFM
Reversible Puller or Pusher
4 Mounting Brackets included X FAN

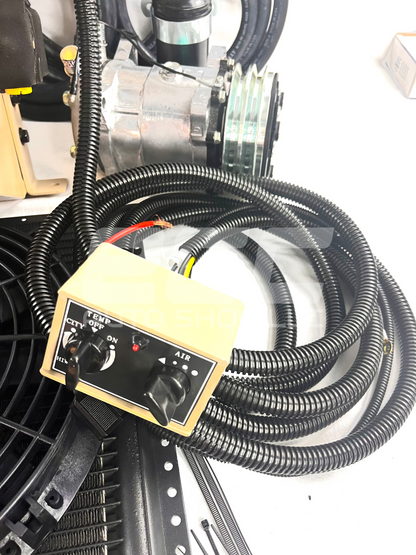

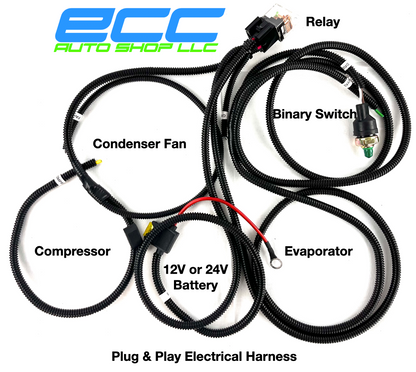

Electrical Harness 24V Relay 15' FT
all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a HUMVEE trucks applications. for special Lengths applications please contact us extra charges maybe apply
NOTE: Electrical Harness after market NO THE ORIGINAL HUMVEE OR RED DOT , but work like the OEM or Better
FAQ.... Please contact us we will be happy to help you make the best decision
+1-727-687-6769
SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping
FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days
NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
