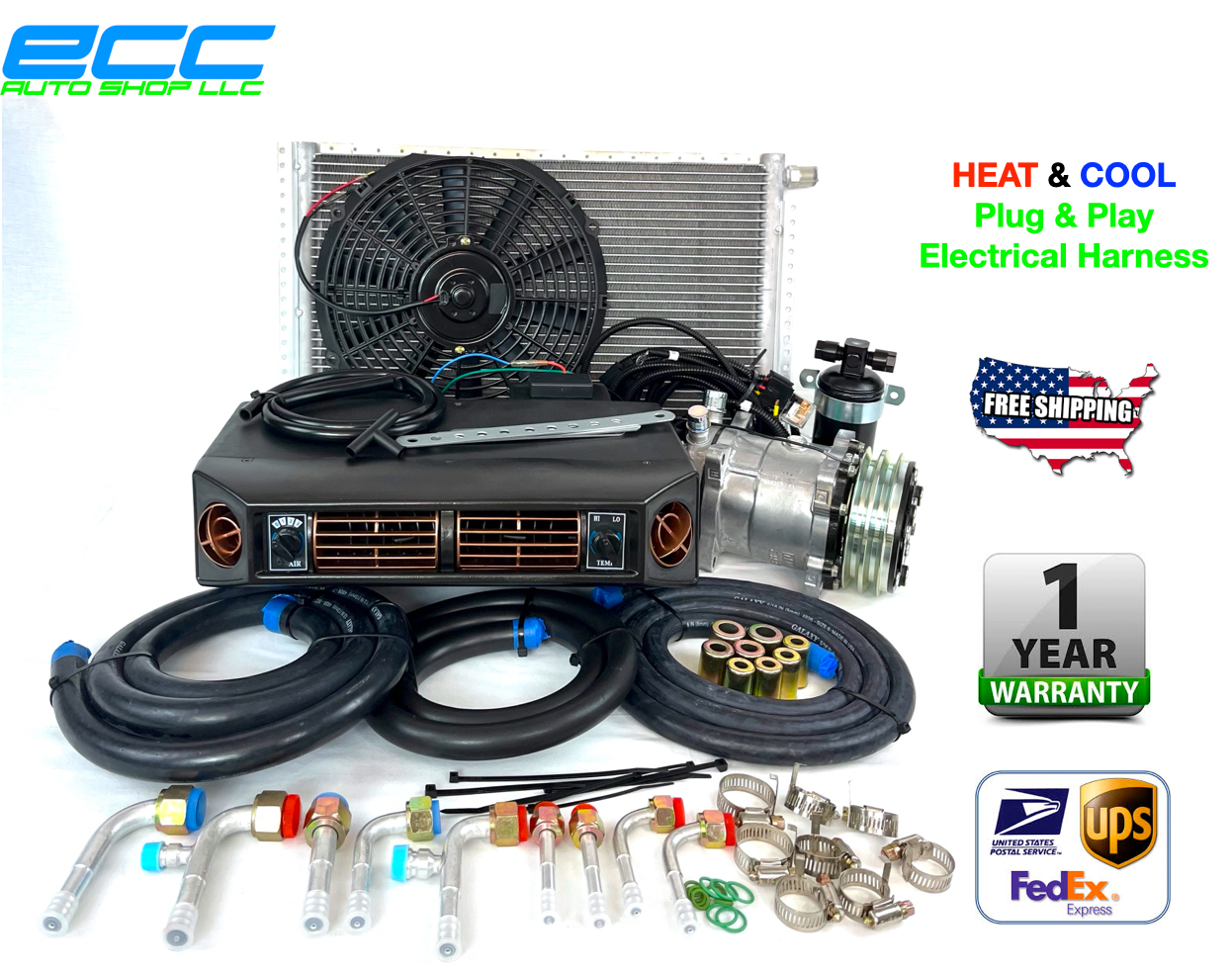

A/C KIT UNIVERSAL UNDERDASH HEAT & COOL EVAPORATOR 404-100 GOLD 12V

Automotive Air Conditioning Specialist

Evaporators, Compressors, Condensers & More.

P/N: AC-KIT-404-100 H/C GOLD

WITH ELECTRICAL HARNESS

ALL OUR PRODUCTS FREE SHIPPING

1 YEAR WARRANTY

UNIVERSAL A/C KIT FOR: CLASSIC CARS, HOT RODS, ANTIQUE CARS,  TRUCKS, AND MORE.

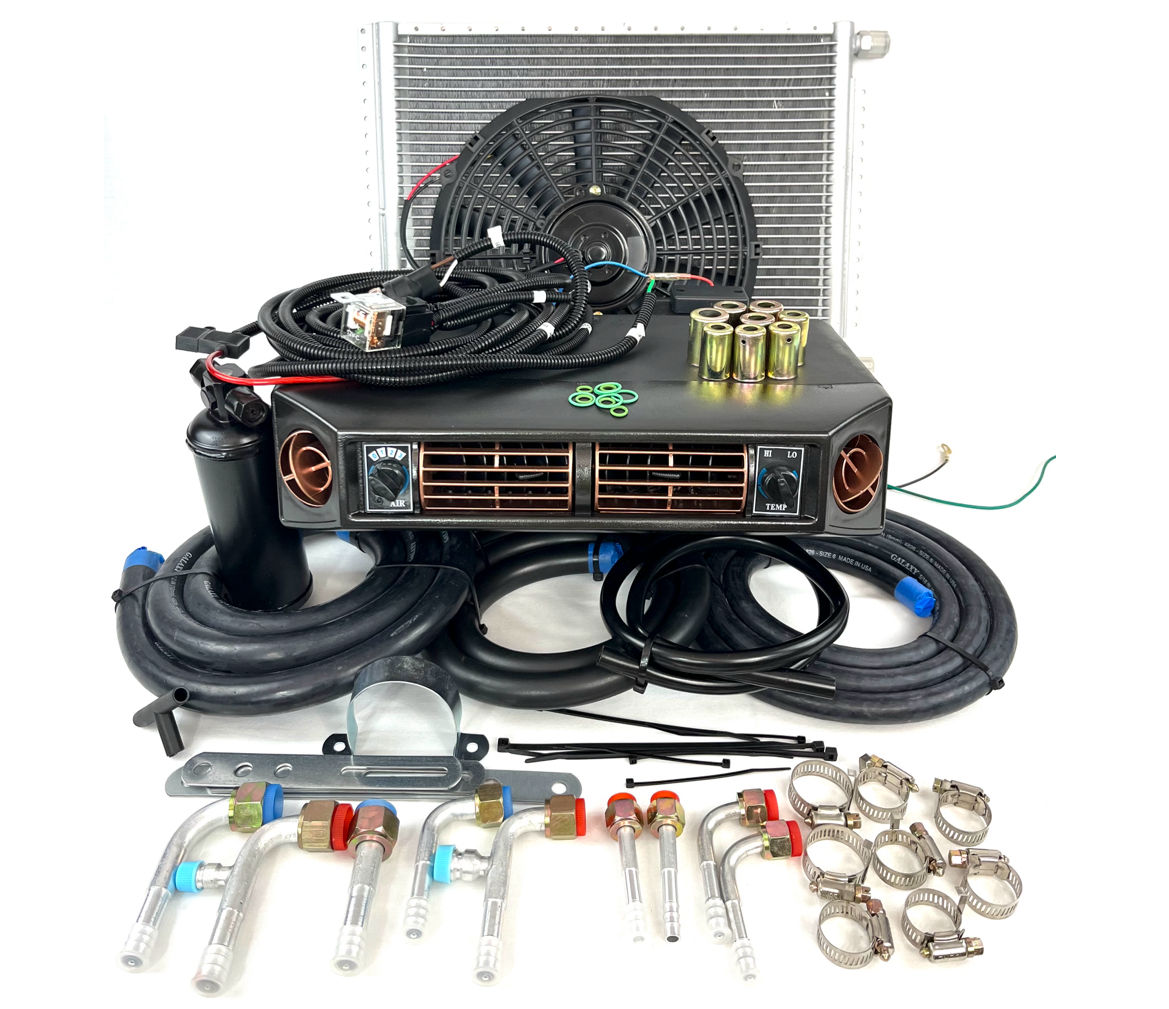

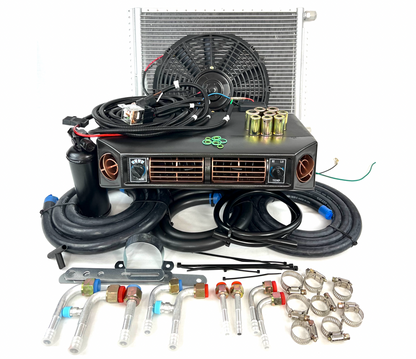

THE KIT INCLUDES:

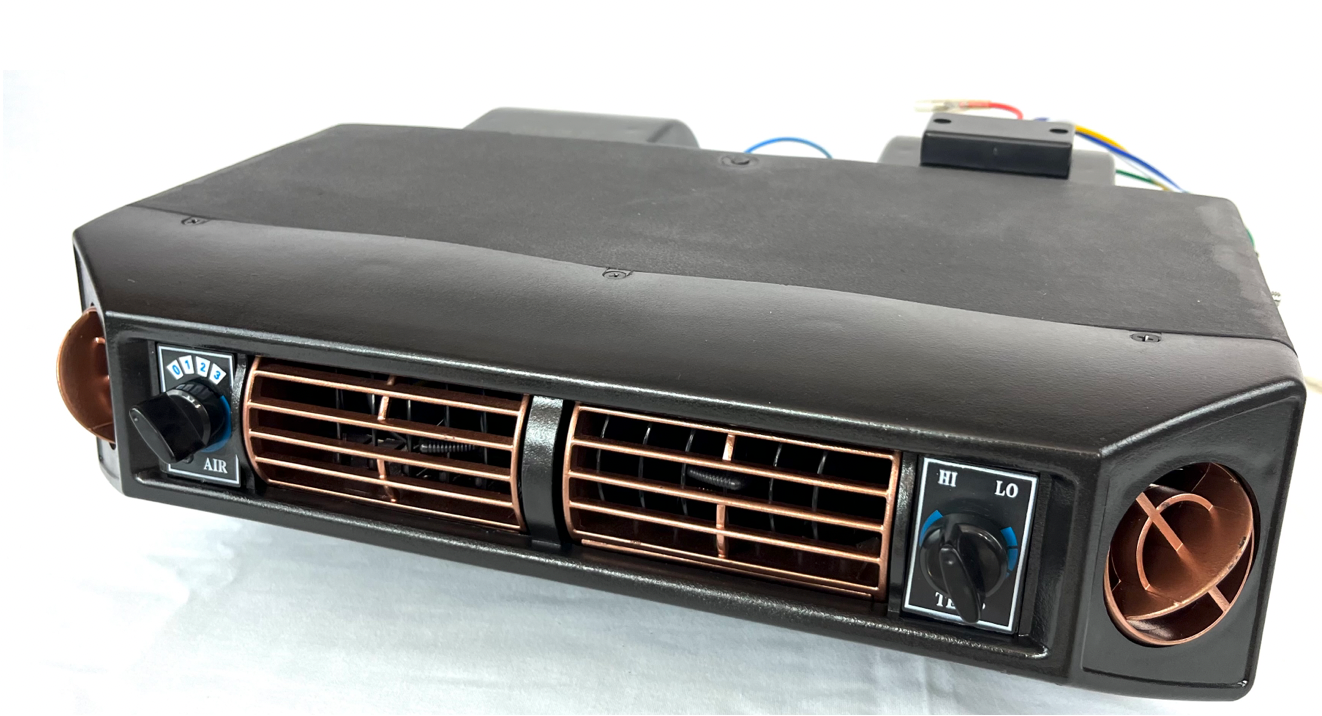

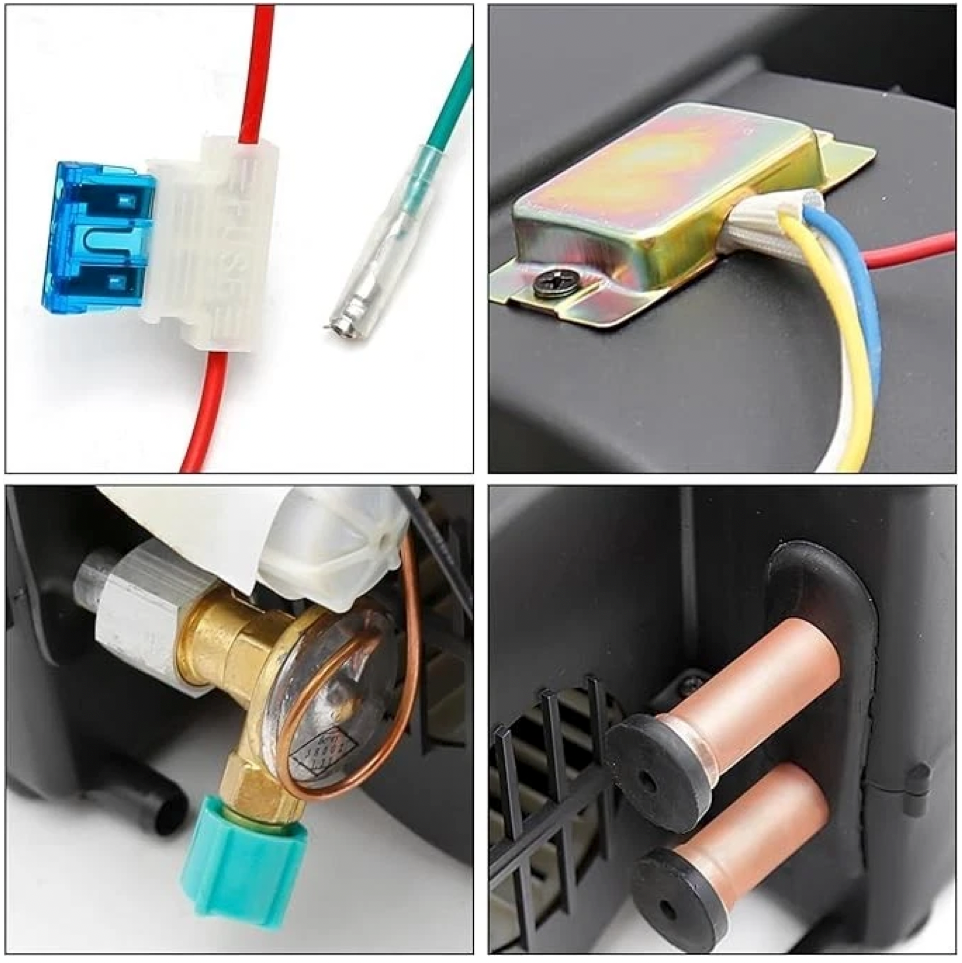

A/C KIT UNIVERSAL UNDER-DASH EVAPORATOR 404-100 GOLD

HEAT & COOL

Model: E-404-100 GOLD

HEAT & COOL

32 pass 4way all aluminum coil

Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

12,700 BTU capacity 359 CFM

DIMENSIONS: L15¾" X D12½" X H6"

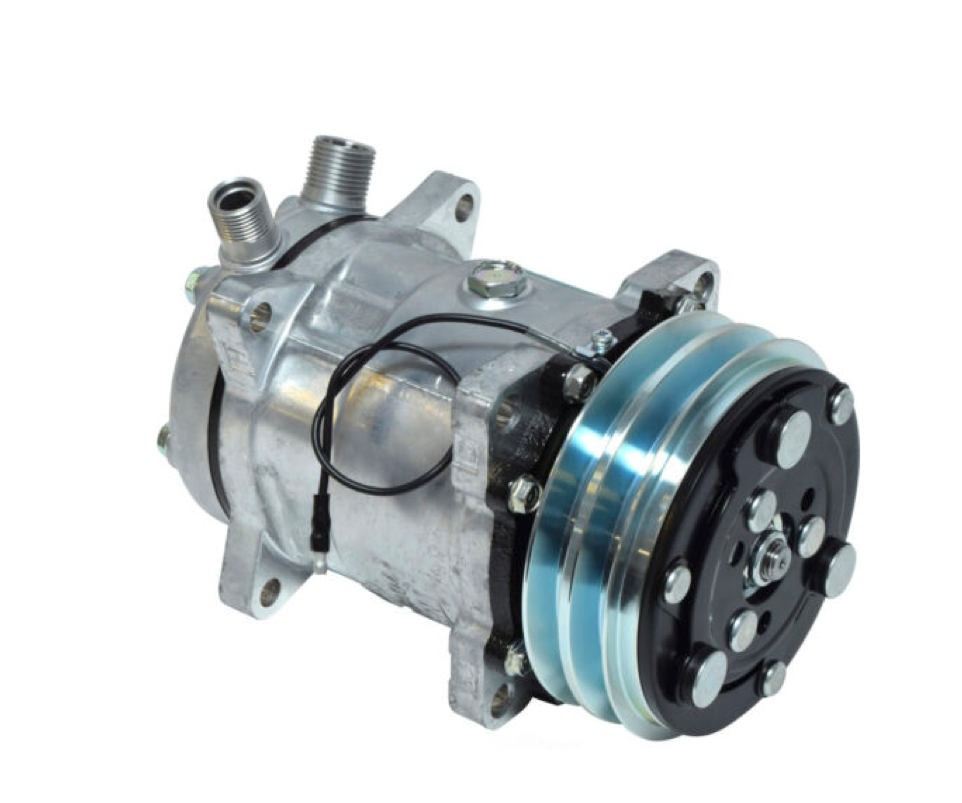

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style  2A Groove Pulley 12v coil

Also available 8PK SERPENTINE PULLEY

100% ELECTRIC COMPRESSOR AVAILABLE (EXTRA COST) CONTACT US BEFORE MAKING YOUR PURCHASE

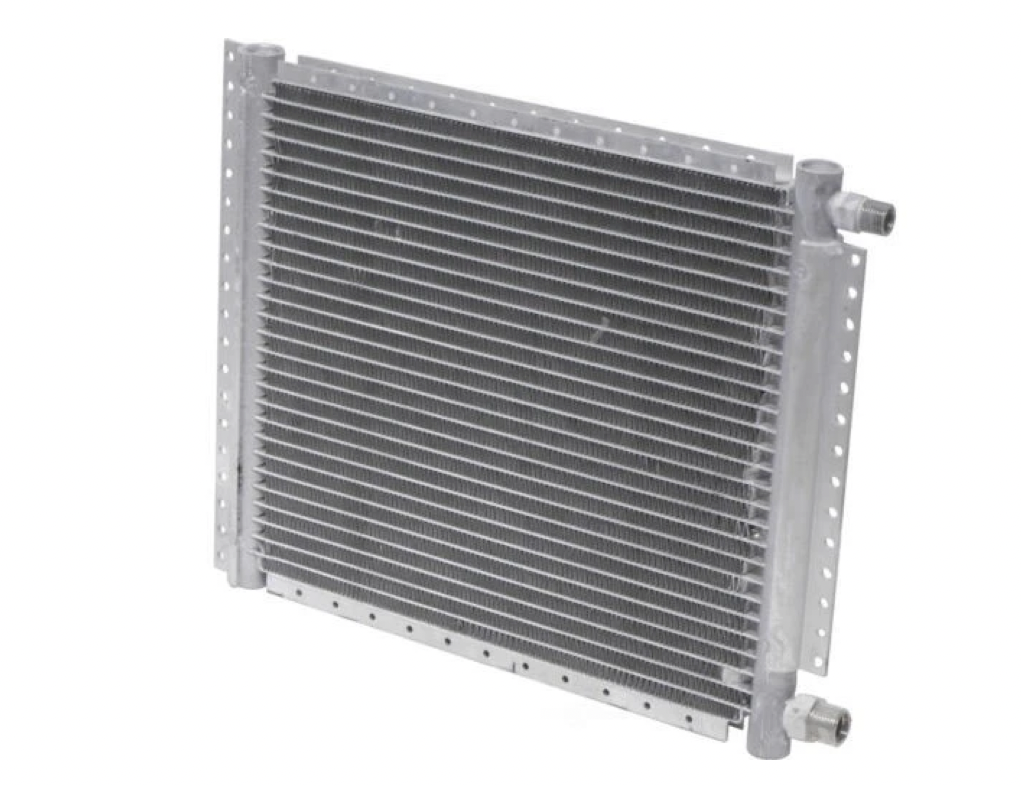

Condenser

Model: CPF142018

PARALLEL FLOW (micro-tube technology)

14"H X 20"L .70"(18mm)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

“Many more sizes available. Please call our tech support if you’re looking for a different one.”

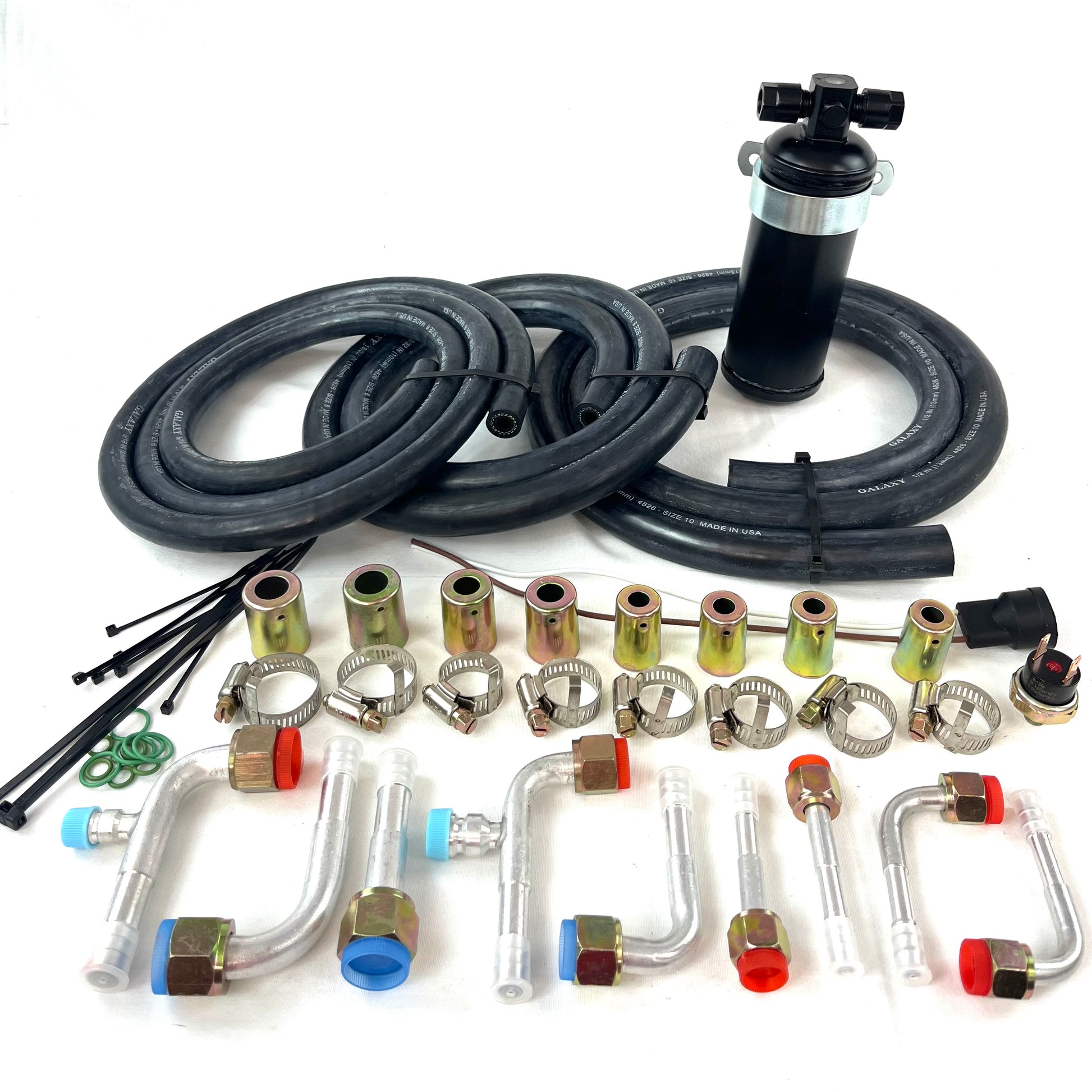

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 6'feet
• #8 13/32 = 4'feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decide to use a/c clamps you don't need a special crimper tool

(YES... We include both systems)

O-ring set is included

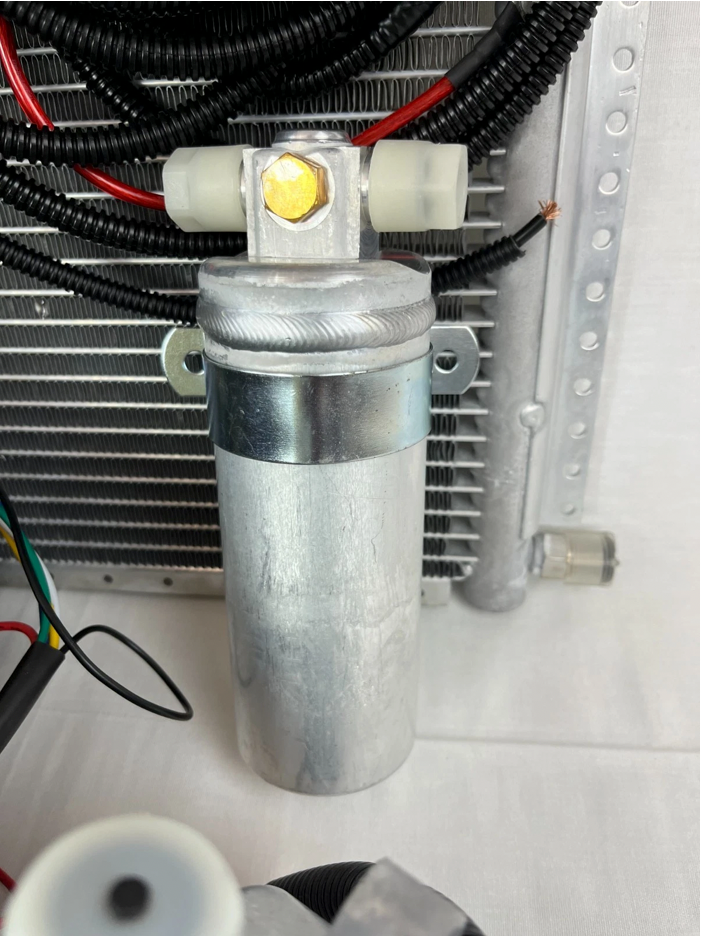

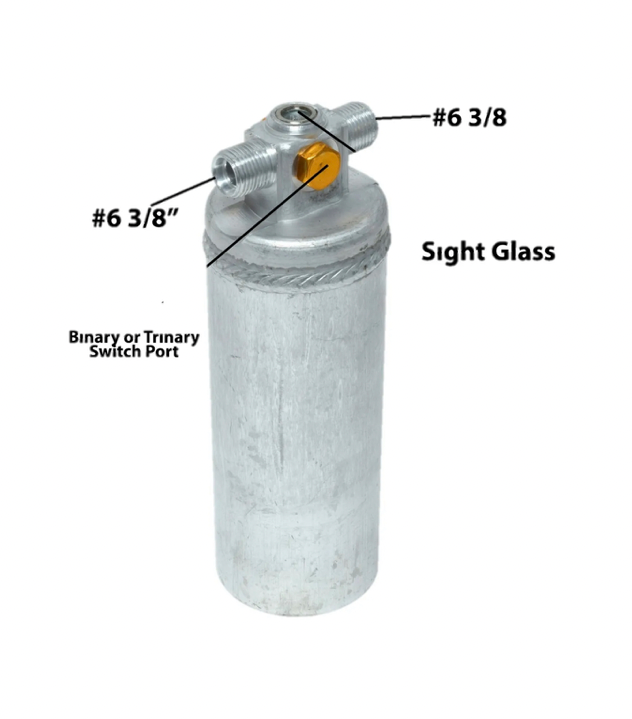

 Filter Drier
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

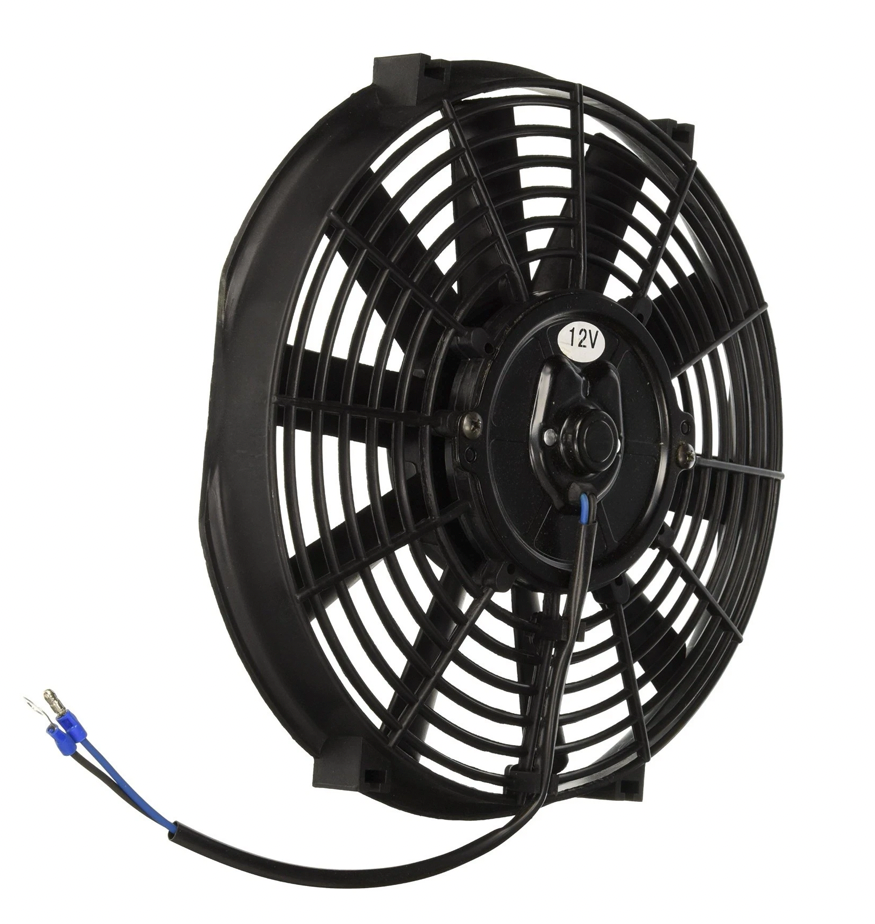

Condenser Fan

Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

Electrical Harness Included!
Every kit comes with a Plug & Play harness that makes installation simple and fast. Designed for standard car and truck applications.
Need a custom length? Contact our tech support — extra charges may apply.

Need Help?
Contact us anytime — our team will gladly help you choose the best option for your vehicle.
Se habla español.727-687-6769
Based in Florida, USA — Free Shipping Nationwide!

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for a quote before buying.

We include complete DIY installation guidelines, and we also provide technical support over the phone or via email at no extra cost during the installation process.
However, we strongly recommend that the installation be performed by a certified professional.
We are not responsible for any damage to you or your vehicle resulting from improper installation.

 Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days

NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
