ECC AUTO SHOP LLC

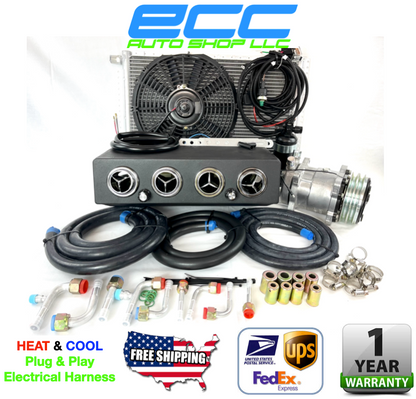

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR HEAT COOL 404-000 CSL ELECTRICAL HARNESS
A/C KIT UNIVERSAL UNDERDASH EVAPORATOR HEAT COOL 404-000 CSL ELECTRICAL HARNESS
Regular price
$587.00 USD
Regular price
$692.00 USD
Sale price
$587.00 USD
Unit price
/
per
Couldn't load pickup availability

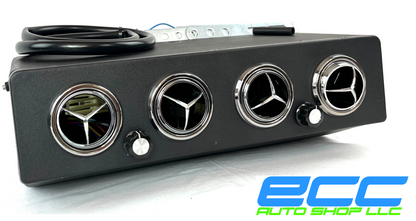

Universal Under-Dash Evaporator Unit
Model: E-404-000 CSL H/C.
Heat & Cool
32 pass 4way all aluminum coil
Expansion valve 1.5 Ton
Thermostat and rotative 3-speed blower switch
12 VOLTS DOUBLE SHALF BLOWER MOTOR Mounting bracket drain hose and T included 12,700BTU capacity 359 CFM
DIMENSIONS: L15¾" X D12½" X H6"
FRONT 4 CHROME STAR LOUVERS WHIT CHROME KNOBS

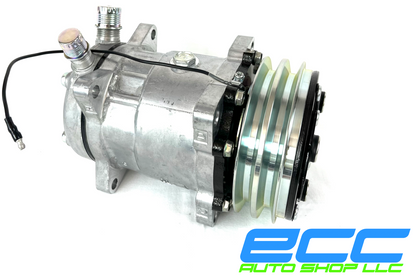

Model: C5H142A12V SD508 5H14
Sanden Style 2A Groove Pulley 12v coil
Also available 8PK Pulley
Condenser Fan

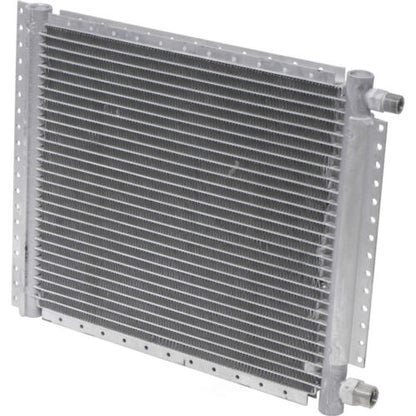

Condenser
Model: CPF142018
PARALLEL FLOW (micro-tube technology)
14"H X 20"L .70"(18mm)W
4 Rails Aluminum
#8 O-ring IN #6 O-ring OUT

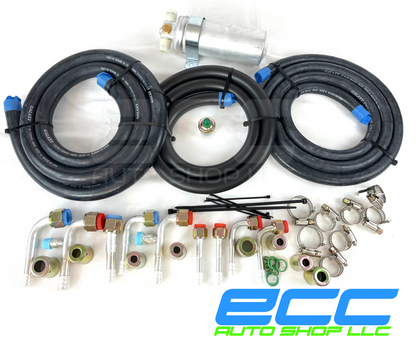

Hoses Set
Model: H6516,H81332, H1012

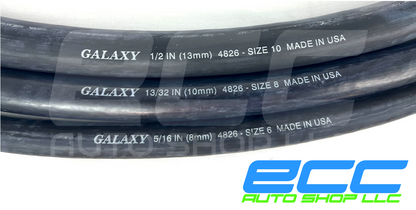

A/C HOSE
- #6 5/16 = 6'feet
- #8 13/32 = 4'feet
- #10 1/2 = 5' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
Fitting Set
Fitting Set
Model: FTSET404
- 1-N° 10 90° O-ring Fitting w/R134a Serv Port
- 1- N° 8 90° O-ring Fitting w/R134a Serv Port
- 1- N° 10 Straight O-ring Fitting
- 1- N° 10 90° O-ring Fitting
- 2- N° 6 90° O-ring Fitting
- 1- N° 8 90° O-ring Fitting
- 2- N° 6 Straight O-ring Fitting
- Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool
(YES... We include both systems)
O-ring set is included

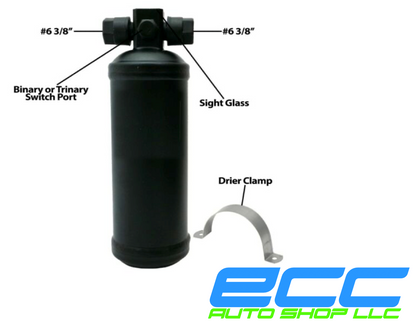

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides
(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message

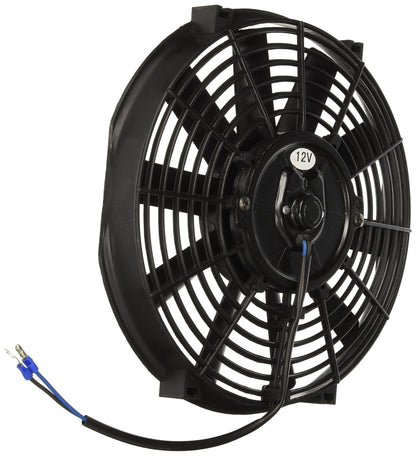

Condenser Fan
Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

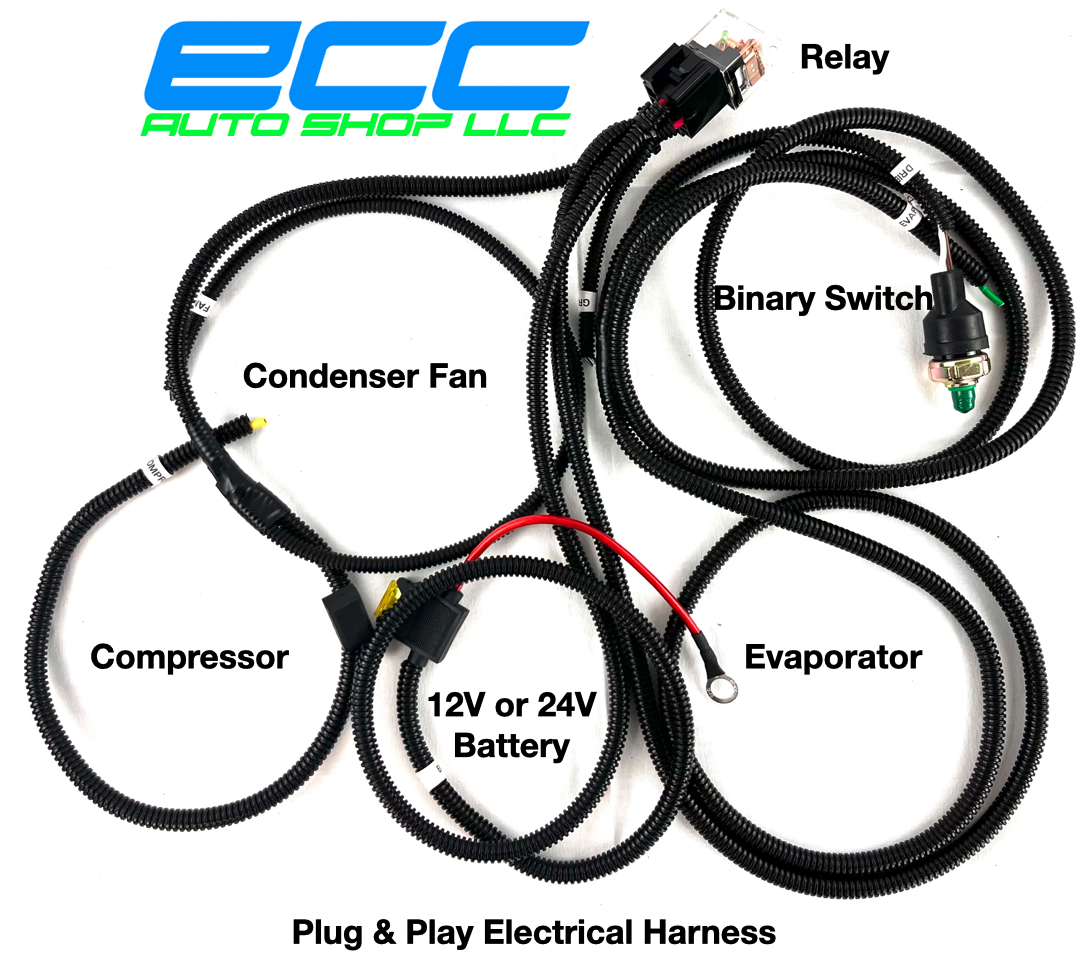

Electrical Harness
all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply
FAQ.... Please contact us we will be happy to help you make the best decision +1-727-687-6769
SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping
FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days
NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
