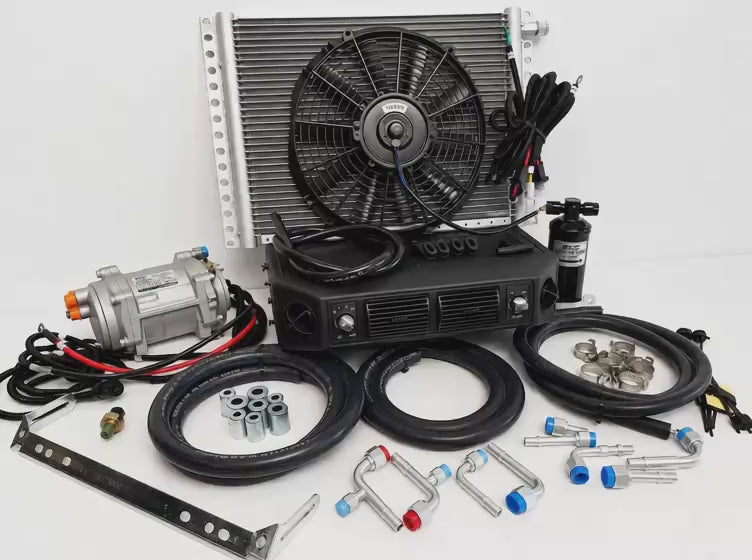

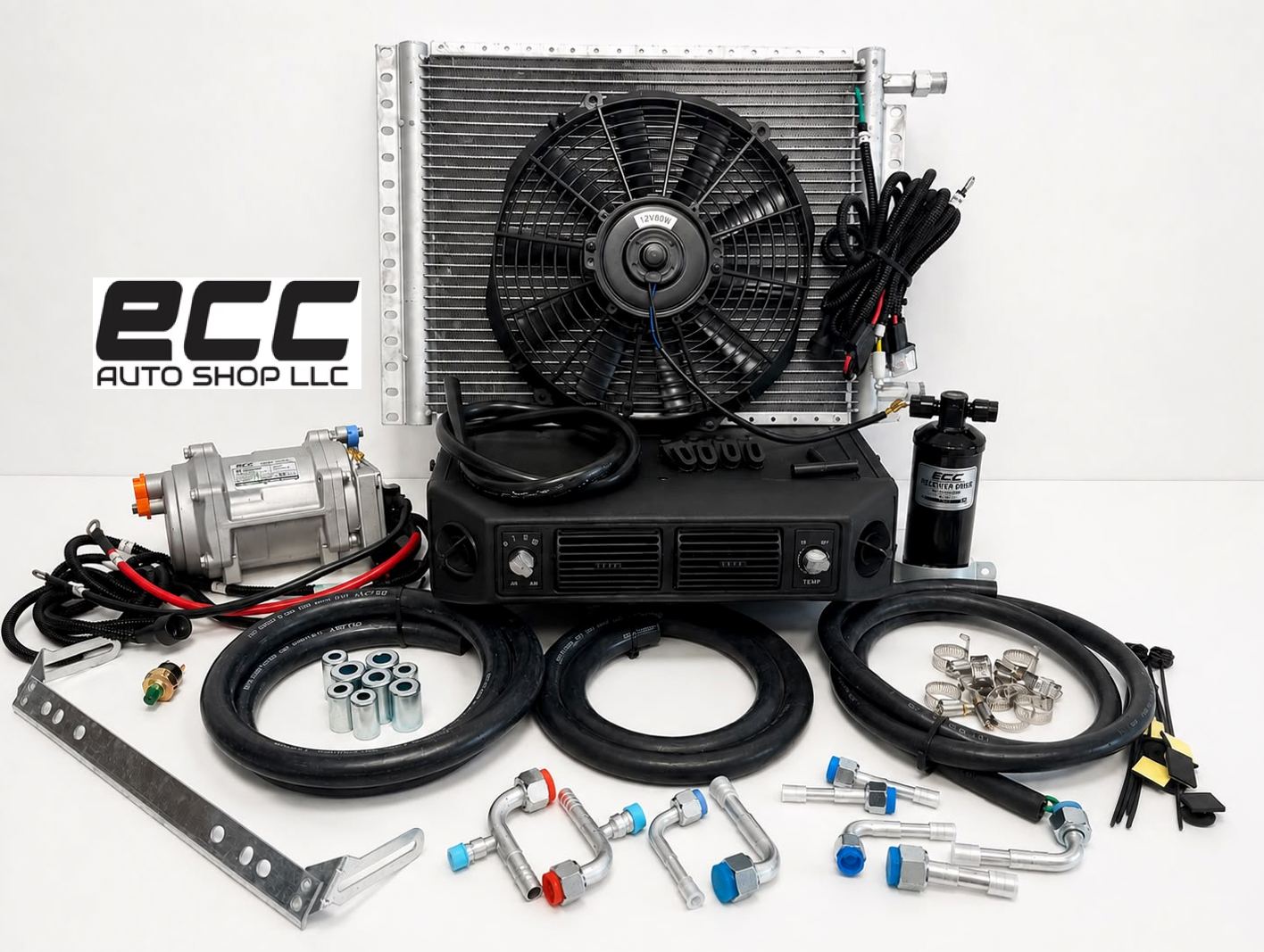

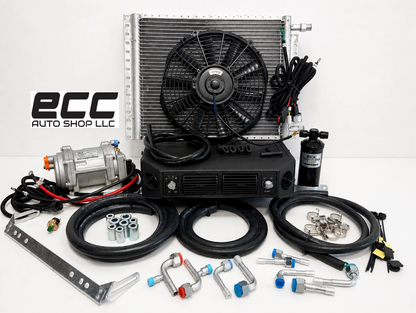

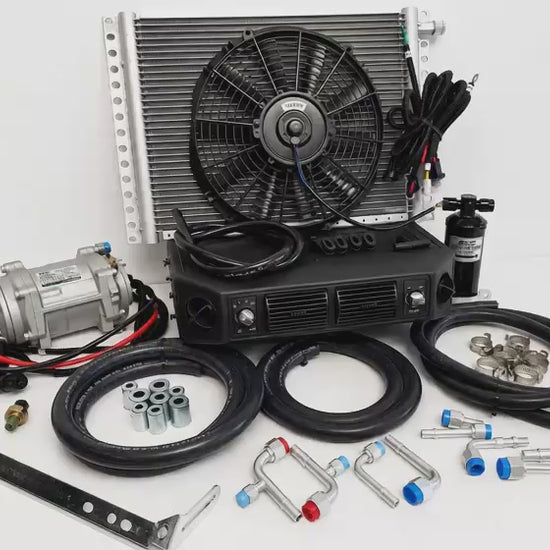

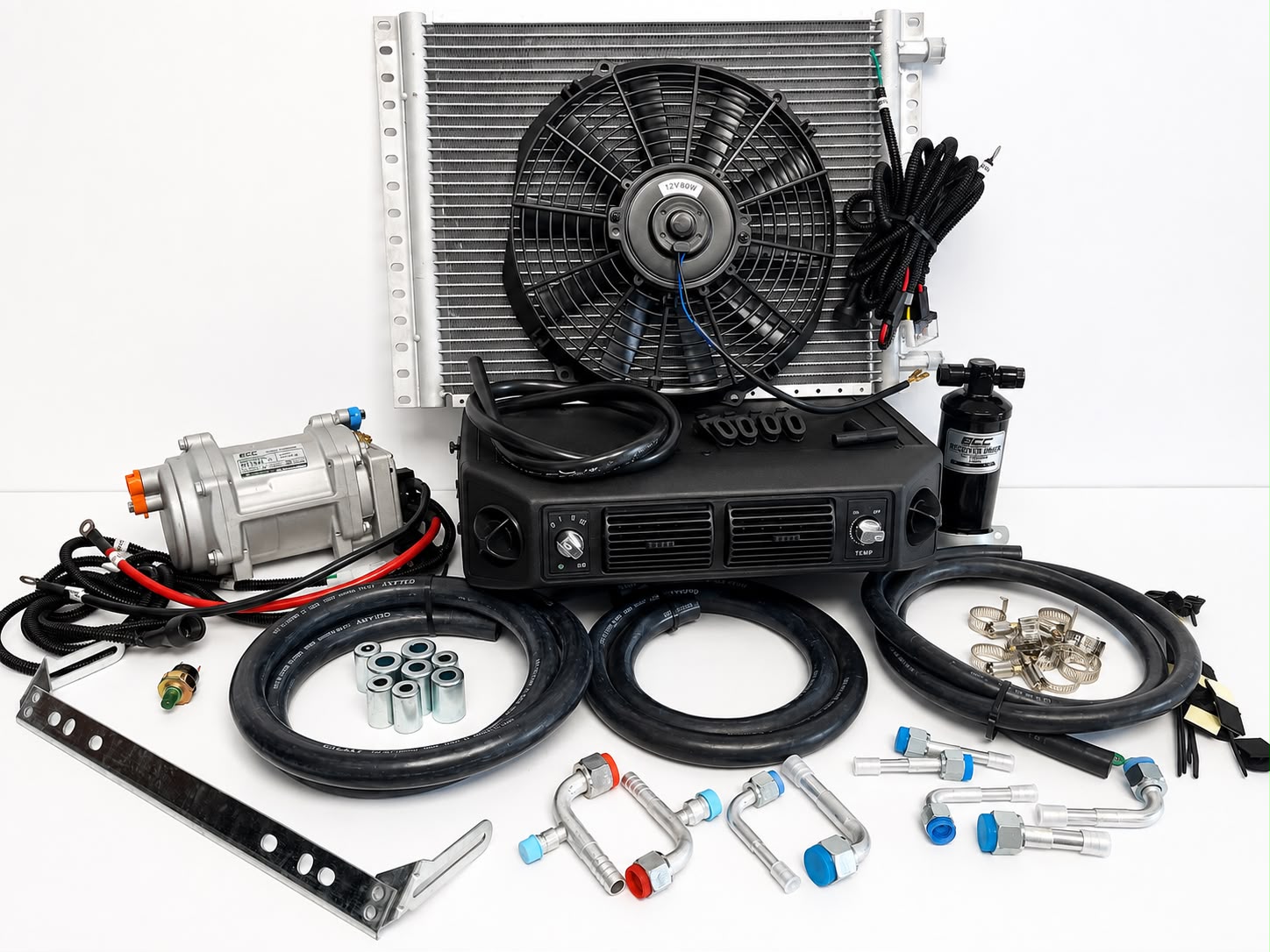

A/C KIT UNIVERSAL UNDERDASH ELECTRIC COMPRESSOR BEU 404-100 HEAT & COOL 12V

A/C KIT UNIVERSAL UNDERDASH ELECTRIC COMPRESSOR BEU 404-100 HEAT & COOL 12V

$580.00 USD
$580.00 USD
Sale Sold out

ECC AUTO SHOP LLC

🇺🇸 We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.🇺🇸
Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.
UNIVERSAL A/C KIT FOR: CLASSIC CARS, HOT RODS, ANTIQUE CARS,  TRUCKS, AND MORE.

MODEL NAME: A/C KIT 404-100 H/C 2 VENTS

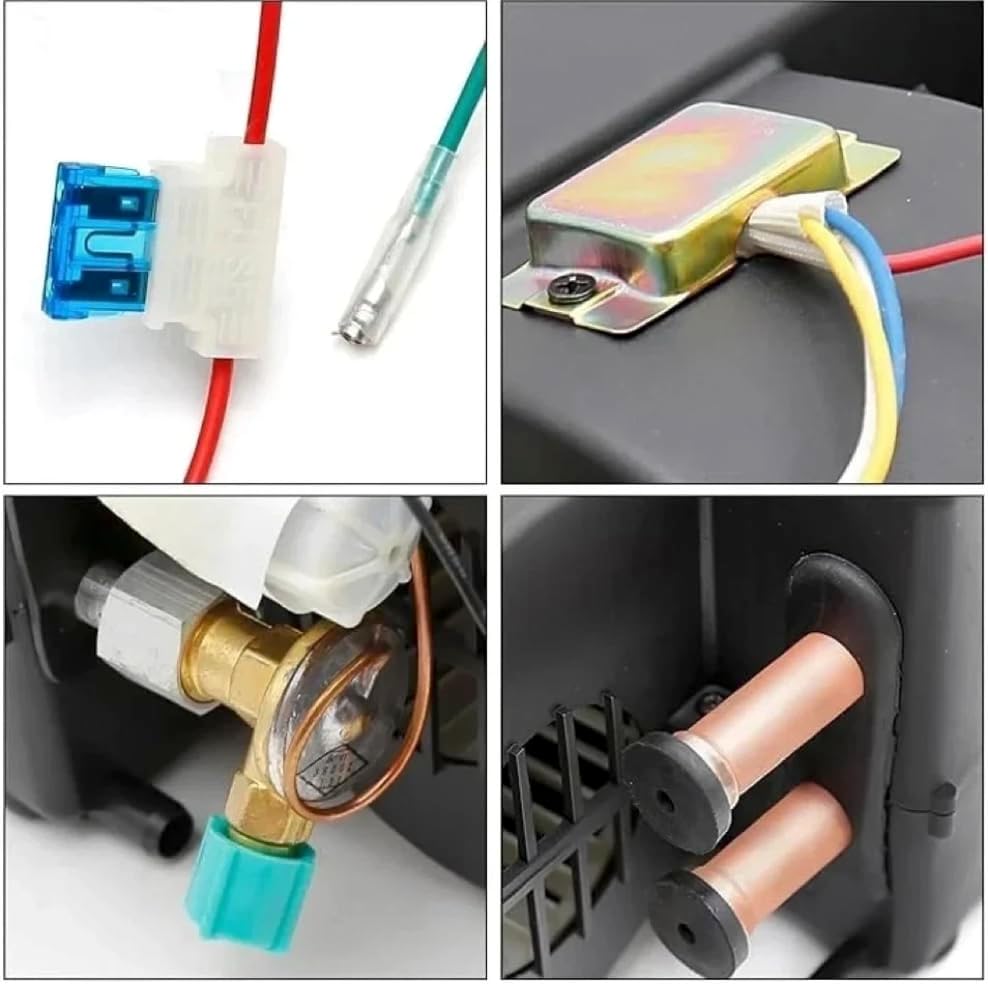

 THE KIT INCLUDES:A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 404-100 2 VENTS   HEAT AND COOL 12V PLUG & PLAY ELECTRICAL HARNESSModel: E-404-100   Heat & Cool32 pass 4way all aluminum coil Expansion valve 1.5 TonThermostat and rotative 3-speed blower switch12 VOLTS DOUBLE SHAFT BLOWER MOTOR Mounting bracket drain hose and T included 12,700 BTU capacity 359 CFM DIMENSIONS: L15¾" X D12½" X H6"

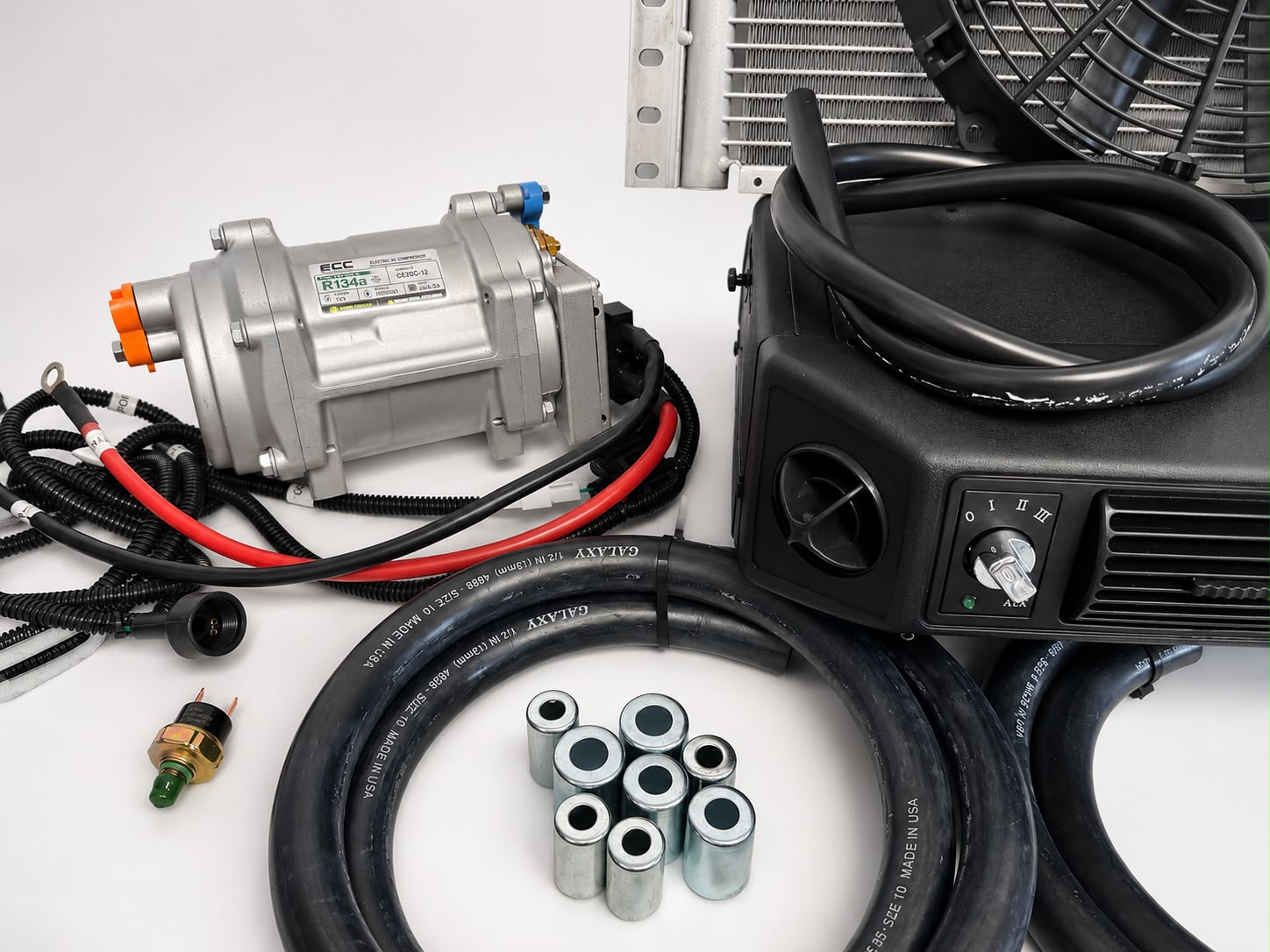

Compressor

MODEL: CE20CC-12

Compressor
⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️
12 VOLTS DC WITH ELECTRICAL HARNESS

Model: CE20CC-12

Compressor Model: CE20CC-12
Compressor type Integrated electric scroll compressor
Suitable refrigerant R134a
Compressor displacement 20cc/r
Oil injection quantity RL68H(POE)/120ml(or according to customer requirements)
Compressor driver Integrated
Motor type Permanent magnet DC speed regulating synchronous motor
Drive control Equipped with special controller
Insulation class Grade F
Total mass(oil) 4.7kg
Cooling mode Suction refrigerant cooling
Suction diameter/seal φ18.3/O ring radial seal
Exhaust port diameter/seal φ15.5/O ring radial seal
Speed range 1500 rpm~2300 rpm
Withstand Seal pressure 3.5MPa
pressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)
Class of protection IP67 (compressor connectors and docking parts used together)

✅ Recommended Alternator  120 AMP IDLE SPEED ✅


Also available BELT DRIVE: Model: C5H142A12V SD508 5H14Sanden Style 8PK SERPENTINE Pulley  12v coil

Condenser

Model: CPF142018 PARALLEL FLOW (micro-tube technology)16"H X 20"L .70"(18mm)W 4 Rails Aluminum#8 O-ring IN  #6 O-ring OUT
Hoses SetModel:
H6516,H81332, H1012 A/C HOSE
  • #6 5/16 = 6' feet
  • #8 13/32 = 4' feet
  • #10 1/2 = 5' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting SetModel: FTSET404
  • 1-N° 10 90° O-ring Fitting w/R134a Serv Port
  • 1- N° 8 90° O-ring Fitting w/R134a Serv Port
  • 1- N° 10 Straight O-ring Fitting
  • 1- N° 10 90° O-ring Fitting
  • 2- N° 6 90° O-ring Fitting
  • 1- N° 8 90° O-ring Fitting
  • 2- N° 6 Straight O-ring Fitting
  • Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems)O-ring set is included

Filter Drier
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
Condenser Fan Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

Electrical Harness
all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.
for special Lengths applications please contact us extra charges maybe apply
FAQ.... Please contact us we will be happy to help you make the best decision
SE HABLA ESPAÑOL Located in Florida USA. Nationwide FREE shipping
FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
