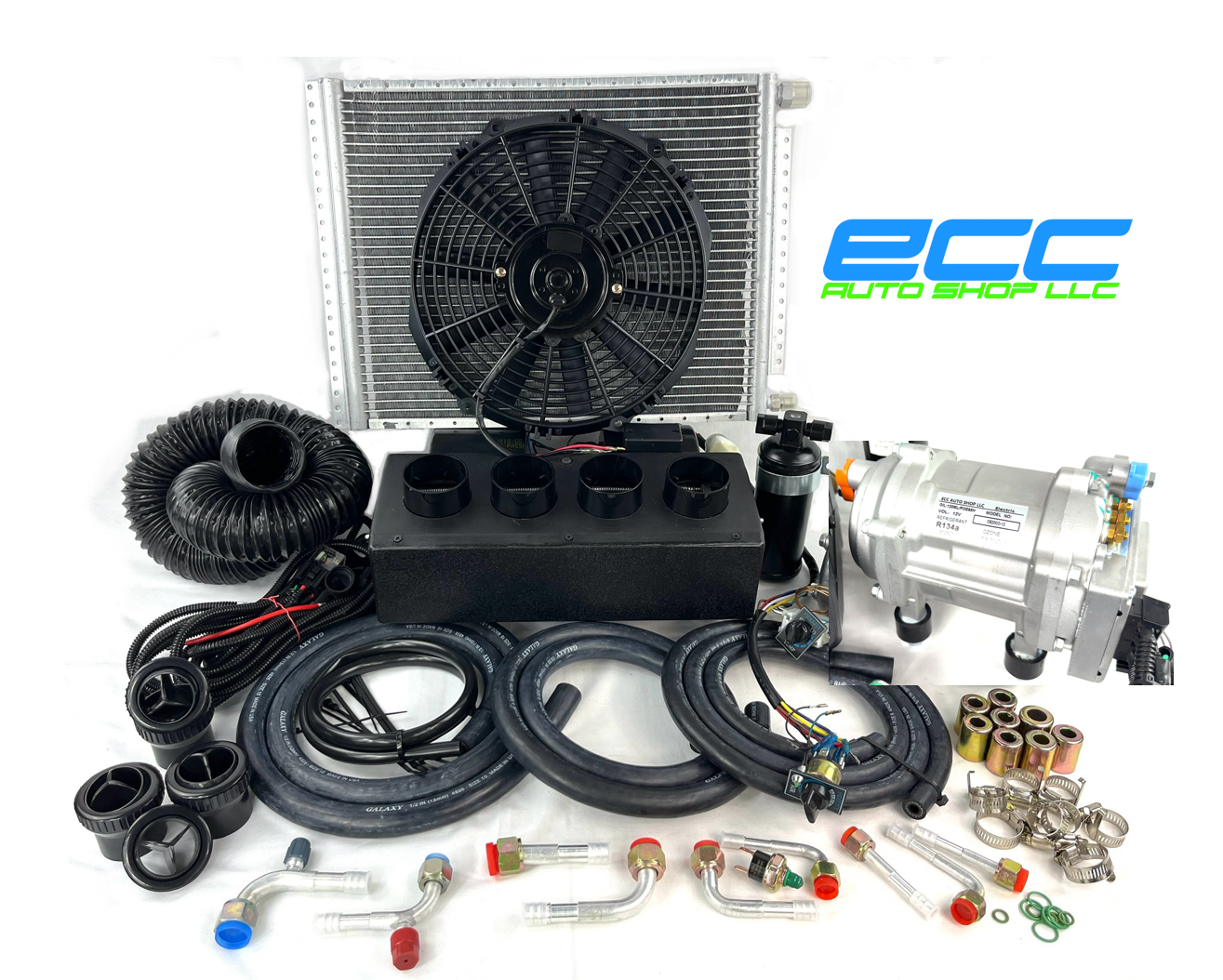

A/C KIT UNIVERSAL UNDER DASH IN-DASH EVAPORATOR 404 DBSL TOP OUTLETS HEAT & COOL ELECTRIC COMPRESSOR
A/C KIT UNIVERSAL UNDER DASH IN-DASH EVAPORATOR 404 DBSL TOP OUTLETS HEAT & COOL ELECTRIC COMPRESSOR
Couldn't load pickup availability
Universal Under-Dash Evaporator Unit
Model: E-404-000 H/C. (4 HOLES TOP OUTLETS 2½" )
Heat & Cool
32 pass 4way all aluminum coil
Expansion valve 1.5 Ton
Thermostat and rotative 3-speed blower switch
12 VOLTS DOUBLE SHAFT BLOWER MOTOR
Mounting bracket drain hose and T included
12,700 BTU capacity 359 CFM
DIMENSIONS: L15¾" X D11½" X H6"
4 BLACK STARS LOUVERS
10' FLEX DUCT 2½" DIAMETER

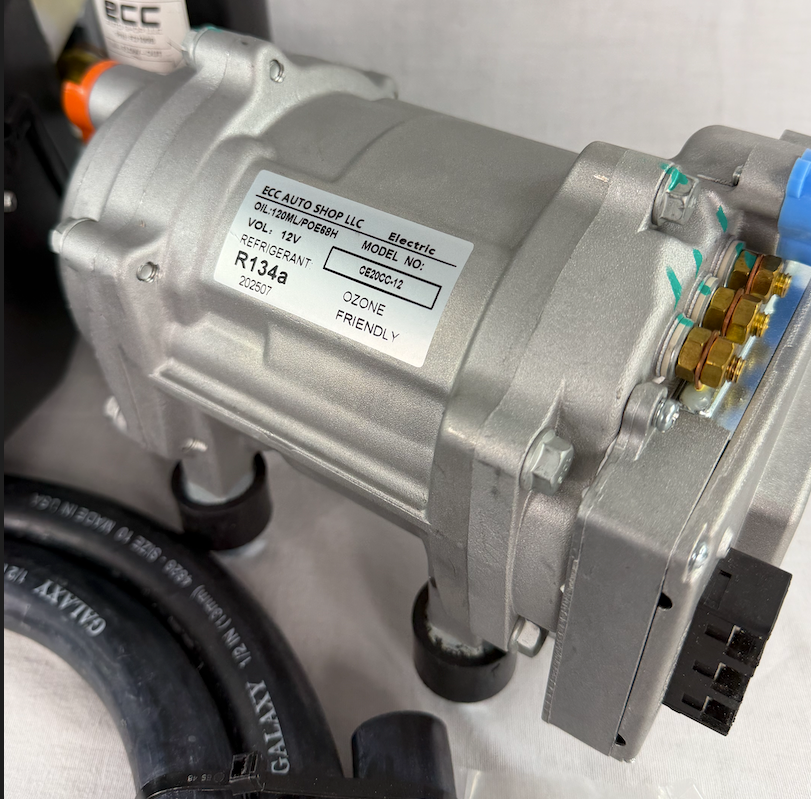

Compressor
Compressor Model: CE20CC-12
Compressor type Integrated electric scroll compressor
Suitable refrigerant R134a
Compressor displacement 20cc/r
Oil injection quantity RL68H(POE)/120ml(or according to customer requirements)
Compressor driver Integrated
Motor type Permanent magnet DC speed regulating synchronous motor
Drive control Equipped with special controller
Insulation class Grade F
Total mass(oil) 4.7kg
Cooling mode Suction refrigerant cooling
Suction diameter/seal φ18.3/O ring radial seal
Exhaust port diameter/seal φ15.5/O ring radial seal
Speed range 1500rpm~2300rpm
Withstand Seal pressure 3.5MPa
pressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)
Class of protection IP67 (compressor connectors and docking parts used together)
✅ Recommended Alternator 120 AMP IDLE SPEED ✅
Also available 8PK SERPENTINE PULLEY OR Sanden Style 2A Groove Pulley 12v coil
CALL US FOR SPECIAL REQUEST
Condenser
Model: CPF141820
PARALLEL FLOW (micro-tube technology)
14"H X 20"L .70"(20mm Core Depth)W
4 Rails Aluminum
#8 O-ring IN #6 O-ring OUT
Hoses Set
Model: H6516,H81332, H1012
STANDARD BARRIER A/C HOSE
-
#6 5/16 = 6' feet
-
#8 13/32 = 4' feet
-
#10 1/2 = 5' feet
(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)
Fitting Set
Model: FTSET404
-
1-N° 10 90° O-ring Fitting w/R134a Serv Port
-
1- N° 8 90° O-ring Fitting w/R134a Serv Port
-
1- N° 10 Straight O-ring Fitting
-
1- N° 10 90° O-ring Fitting
-
2- N° 6 90° O-ring Fitting
-
1- N° 8 90° O-ring Fitting
-
2- N° 6 Straight O-ring Fitting
-
Set include metal FERRULES and CLAMPS
If you decided use a/c clamps you don't need special crimper tool
(YES... We include both systems)
O-ring set is included
Filter Drier
Model: FD100B BLACK
2½"Diameter 7½"Hight Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides
(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message
Condenser Fan
Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
Electrical Harness
all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply
FAQ.... Please contact us we will be happy to help you make the best decision
+1 727 687 6769
SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping
FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.
Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days
NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
