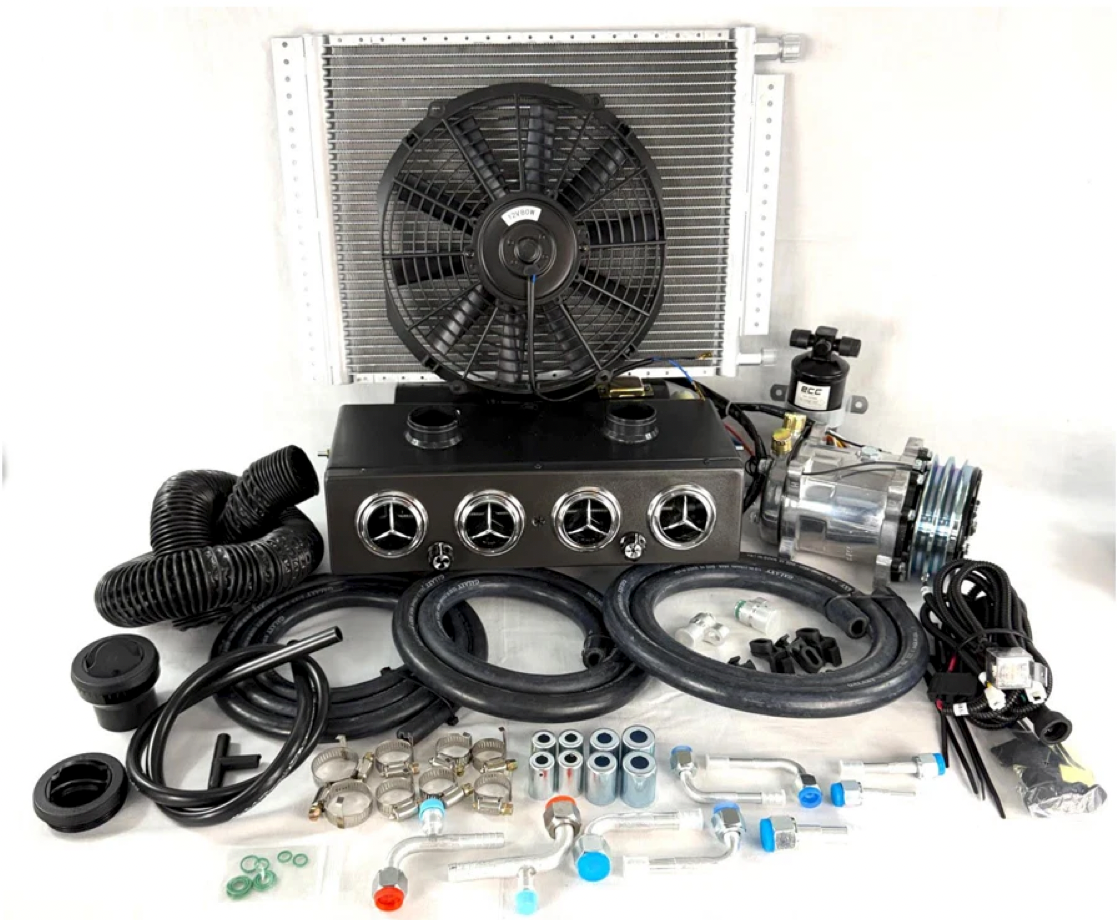

A/C KIT UNIVERSAL UNDER DASH HEAT & COOL 404 WITH 2 AUXILIARY DEFROSTER VENT SW

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

UNIVERSAL A/C KIT FOR: CLASSIC CARS, HOT RODS, ANTIQUE CARS,  TRUCKS, AND MORE.

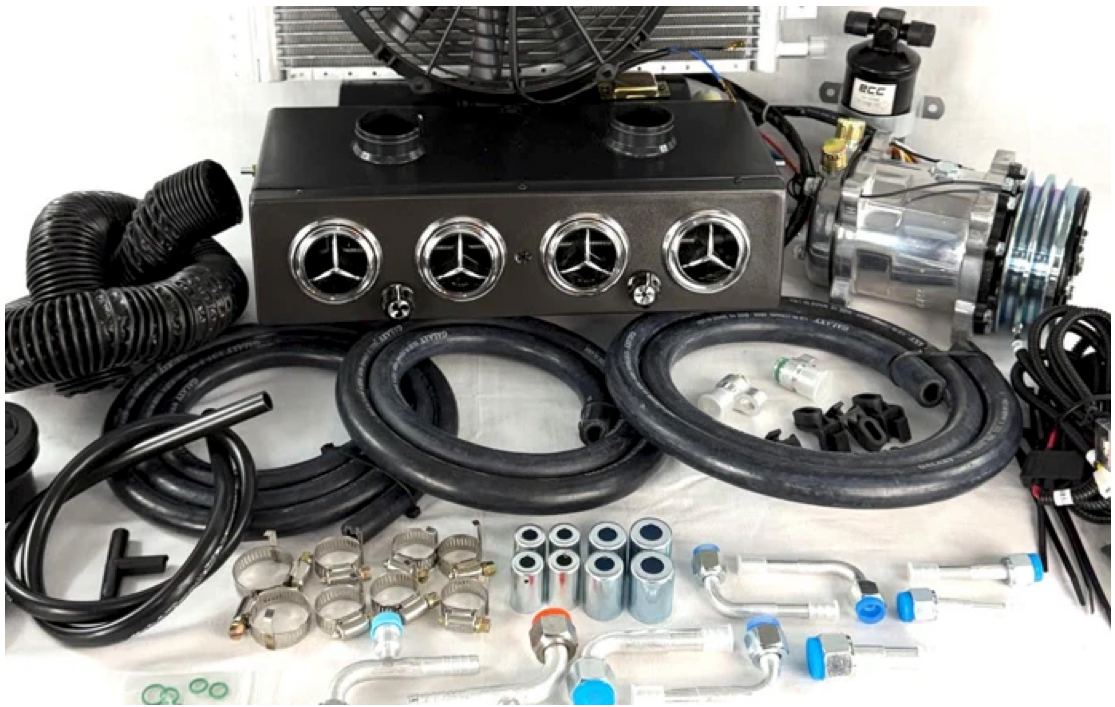

THE KIT INCLUDES:

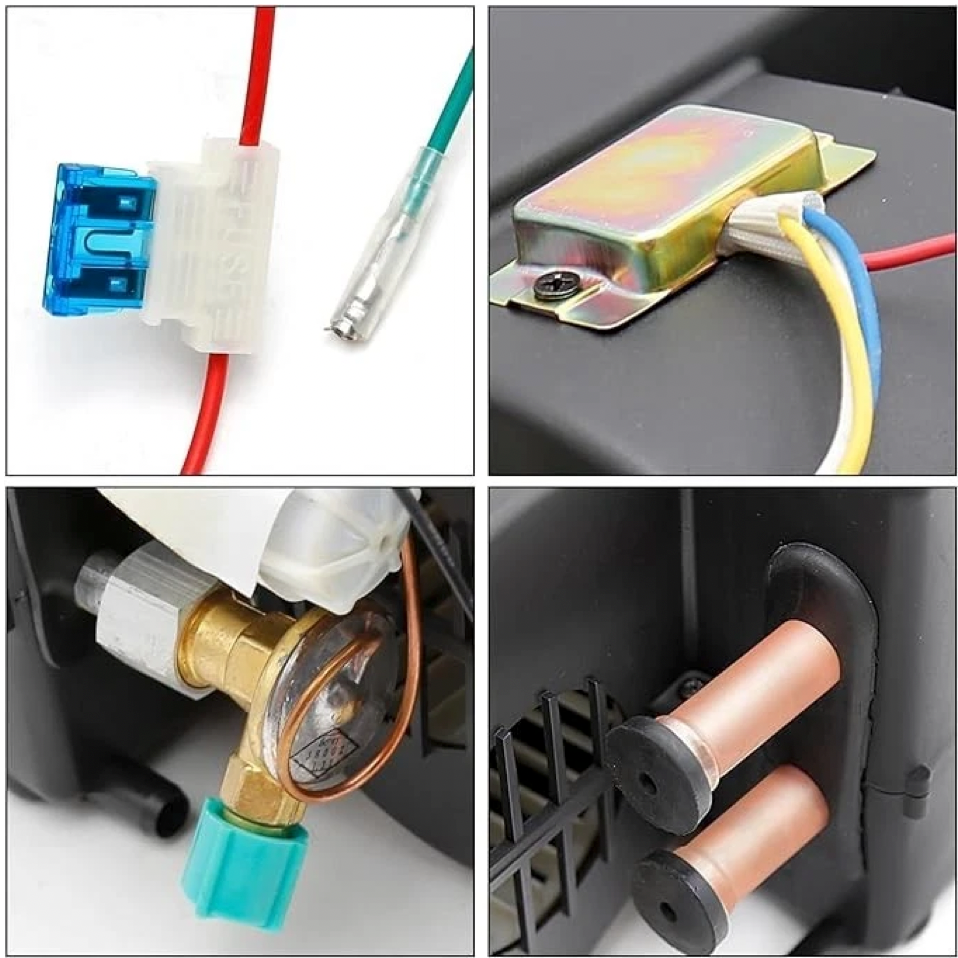

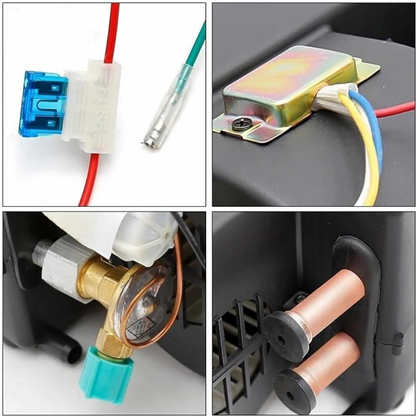

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR HEAT & COOL 404 CSL ELECTRICAL HARNESS

Universal Under-Dash Evaporator Unit

Model: E-404-000 H/C. 4 CHROME VENTS + 2 AUXILIARY DEFROSTER VENTS

Heat & Cool

32 pass 4way all aluminum coil

Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

12,700 BTU capacity 359 CFM

DIMENSIONS: L15¾" X D12½" X H6"

4 CHROME STARS LOUVERS

5' FT  FLEX DUCT 2"ID + 2 SHUT-OFF VENTS

Ideal solution for vehicles that do not come equipped with a factory windshield defroster. This auxiliary system improves visibility by directing airflow to the windshield, helping to reduce fog and moisture. Please note that installation requires cutting openings in the dashboard to properly mount the vents. Once installed, the vents can be manually opened and closed, allowing you to control airflow as needed for maximum comfort and effectiveness.

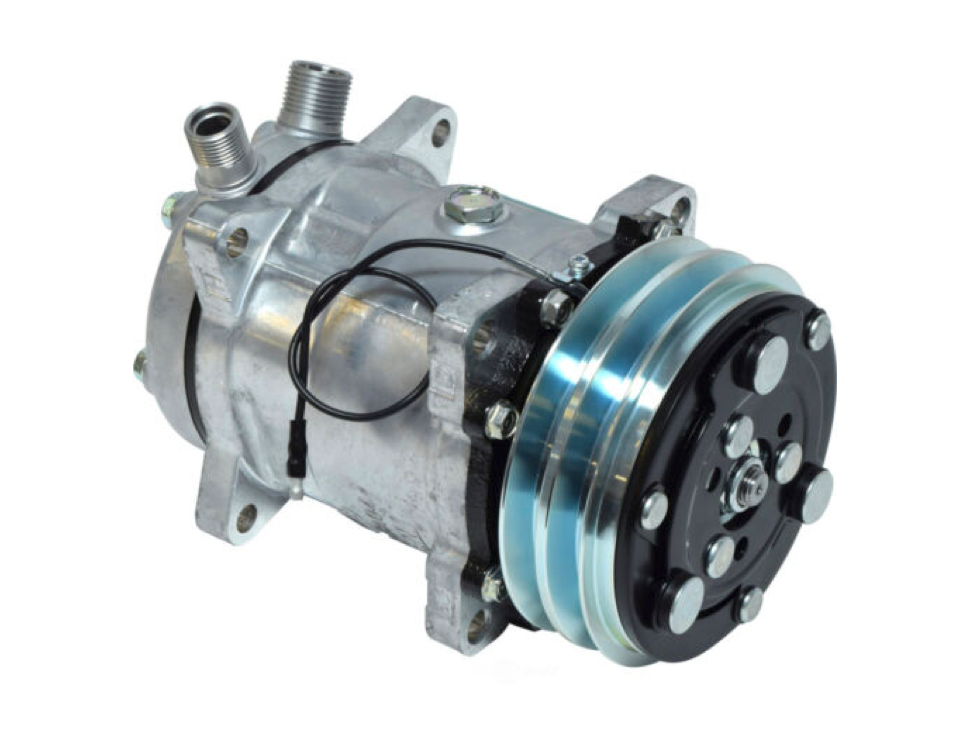

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style  2A Groove Pulley 12v coil

Also available 8PK Pulley

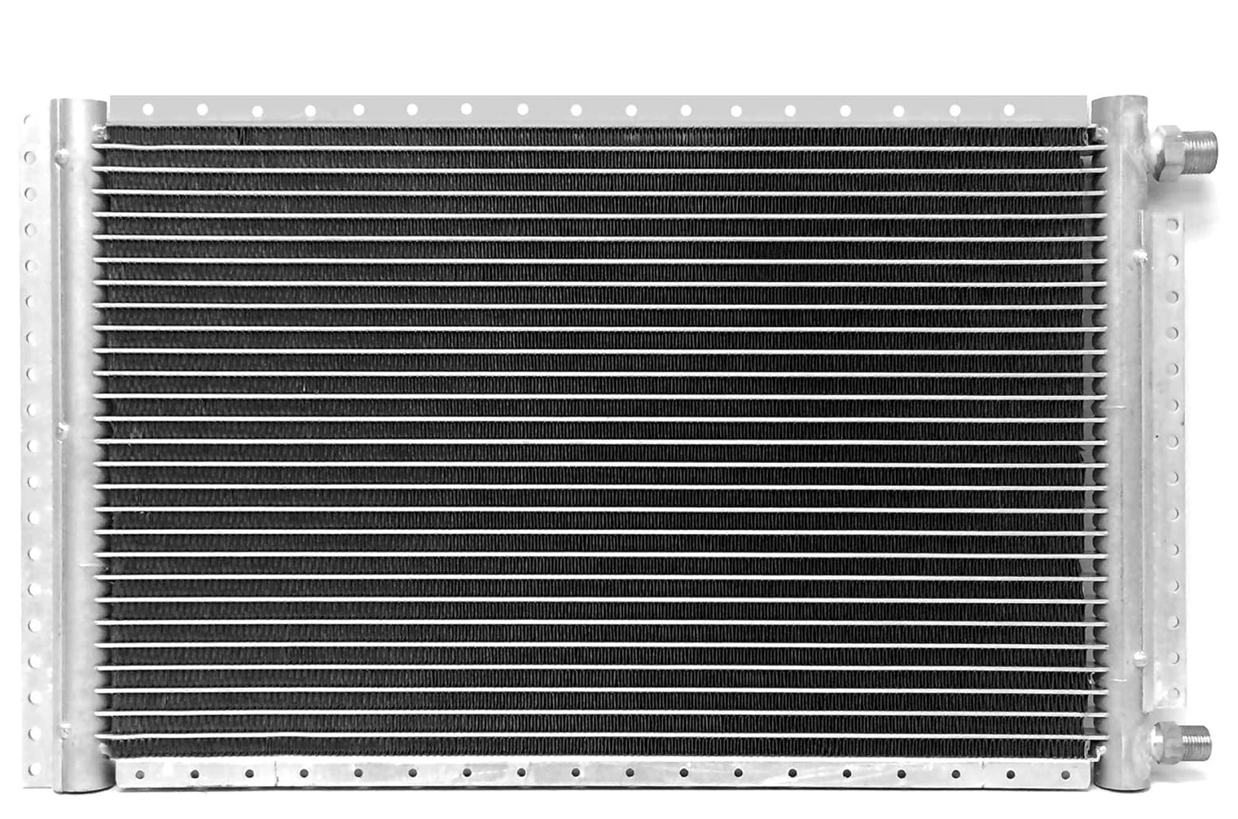

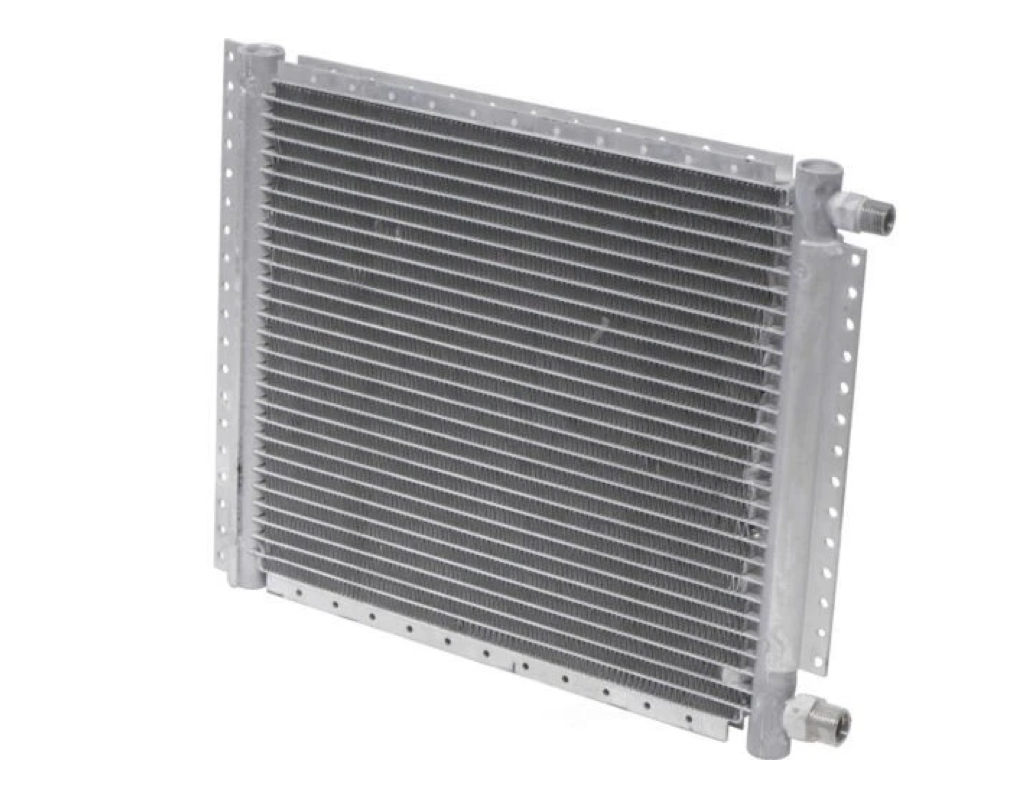

Condenser

Model: CPF142018

PARALLEL FLOW (micro-tube technology)

14"H X 20"L .70"(18mm)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 6' feet
• #8 13/32 = 4' feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

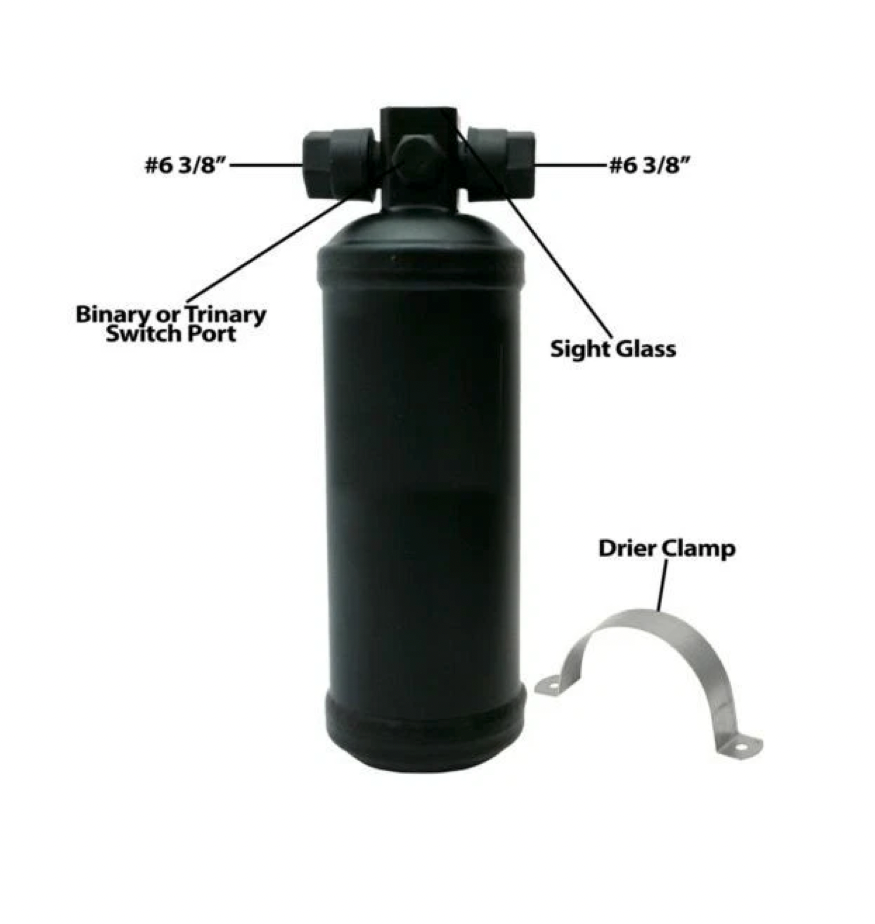

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
(NOTE: Aluminum or Black) if you have a preference let us know leaving a message

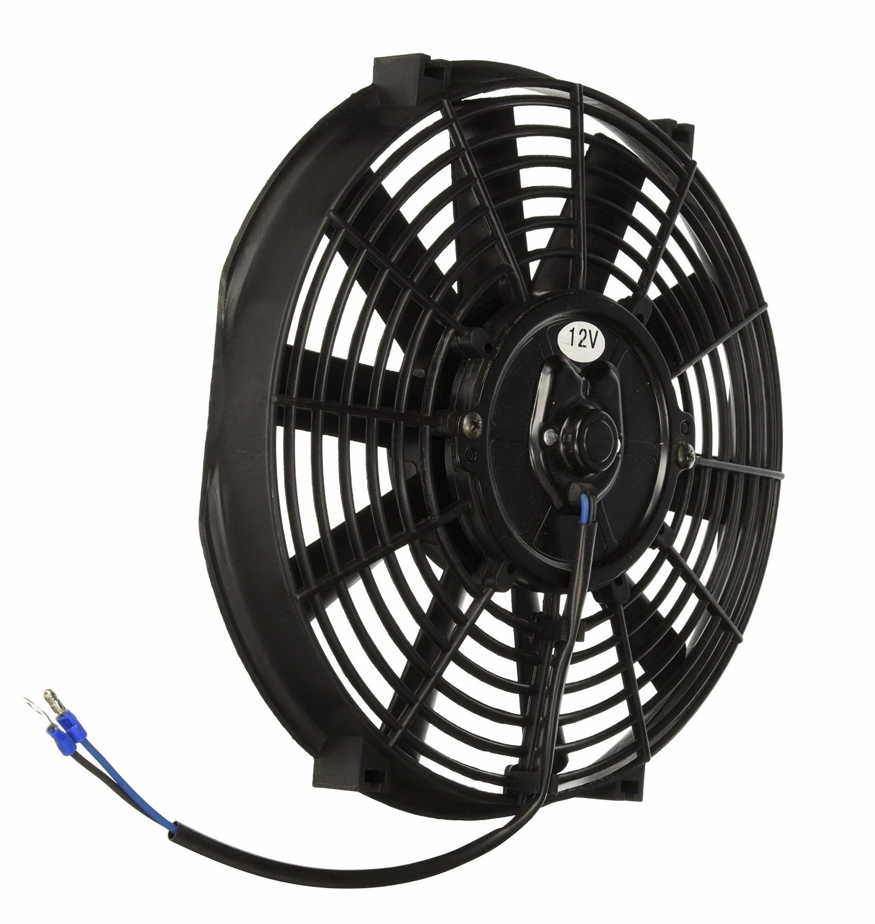

Condenser Fan

Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL Located in Florida USA. Nationwide shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

 Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

Please Note: Gas R134a, compressor mounting bracket, heater hoses, and control valve are not included (sold separately).
We can help you source any extra parts for special applications, including brackets, belts, fittings, adapters, connectors, and more.

✅ Easy to find compatible components
✅ Support for custom setups
