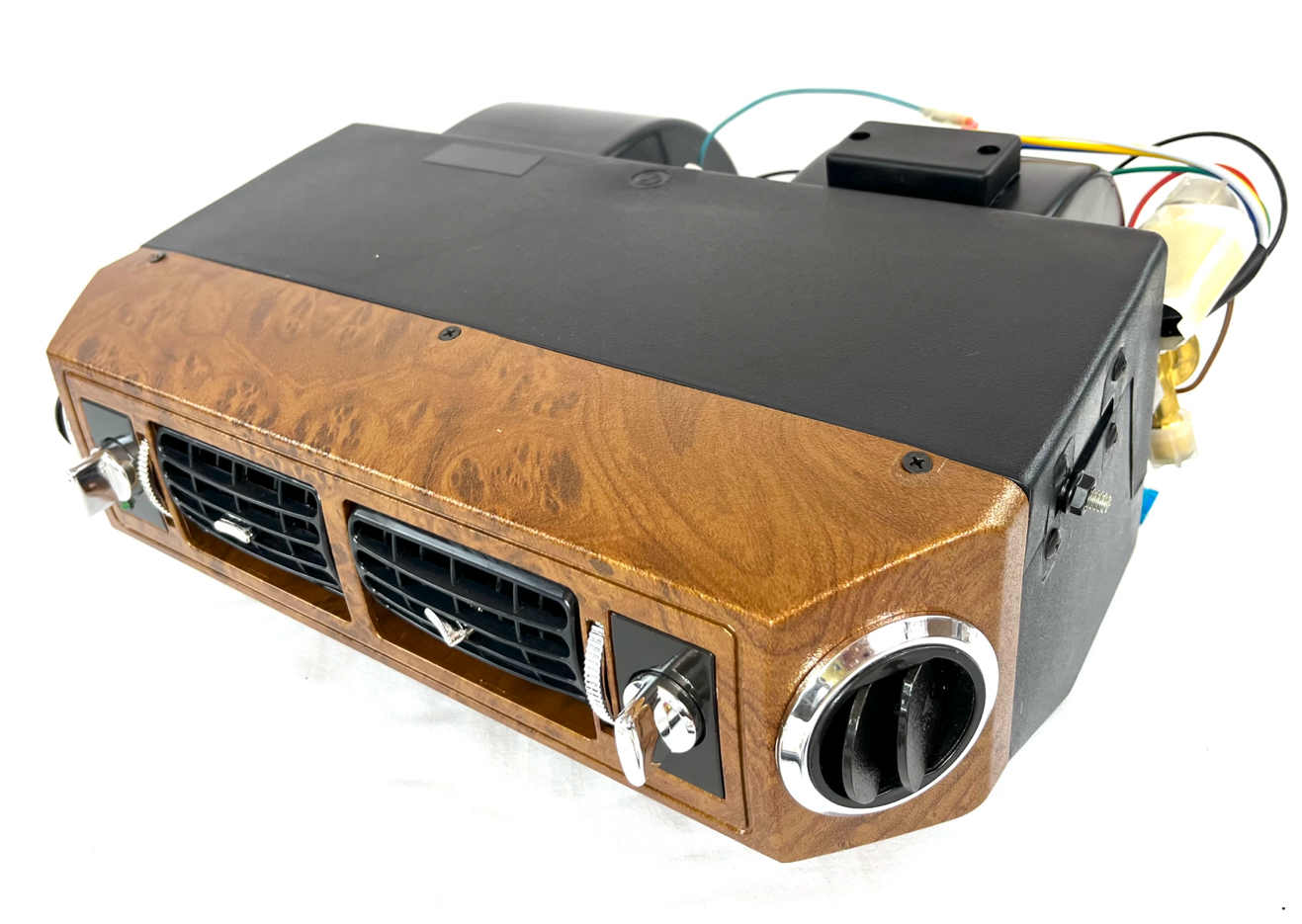

A/C KIT UNIVERSAL UNDER DASH EVAPORATOR 432-100 WALNUT FINISH 12X16 CONDENSER

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.🇺🇸

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

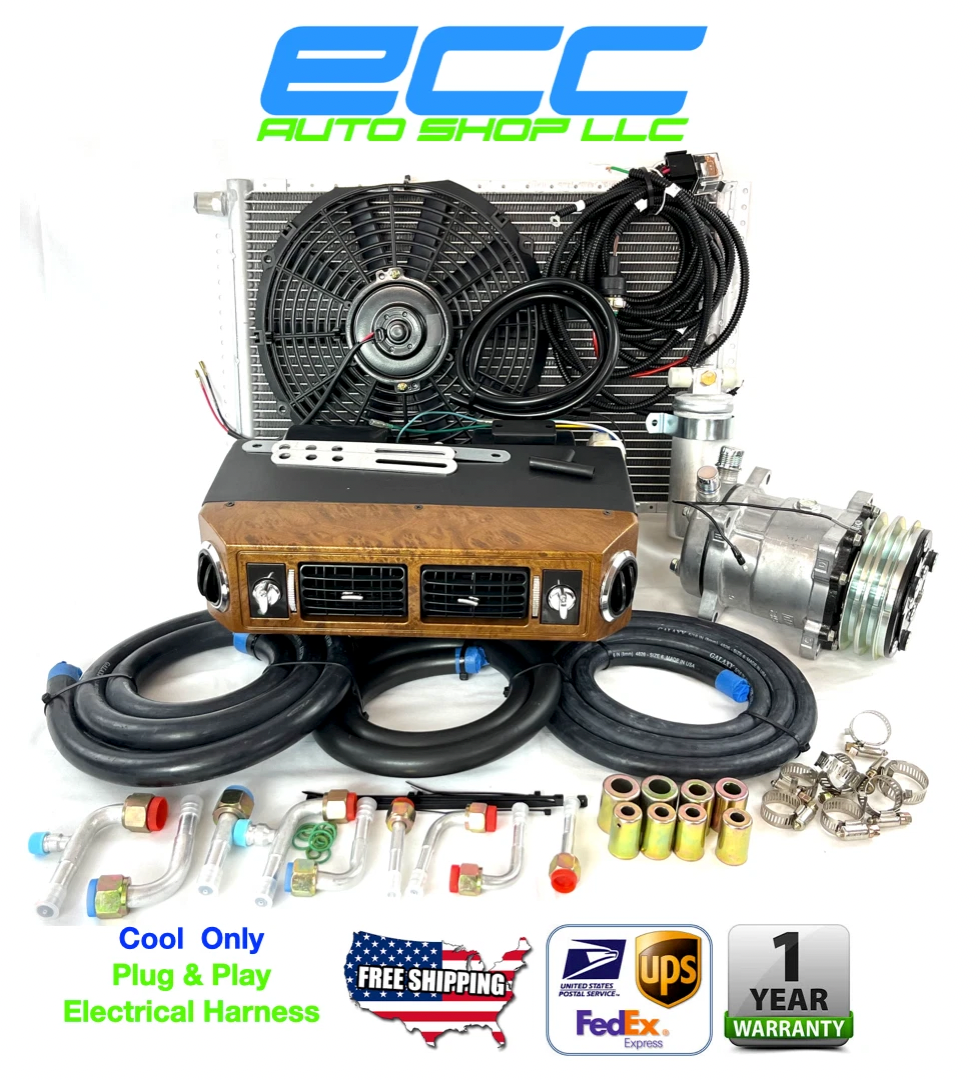

THE KIT INCLUDES:

A/C KIT UNIVERSAL UNDER DASH EVAPORATOR 432-100 12V WITH ELECTRICAL HARNESS

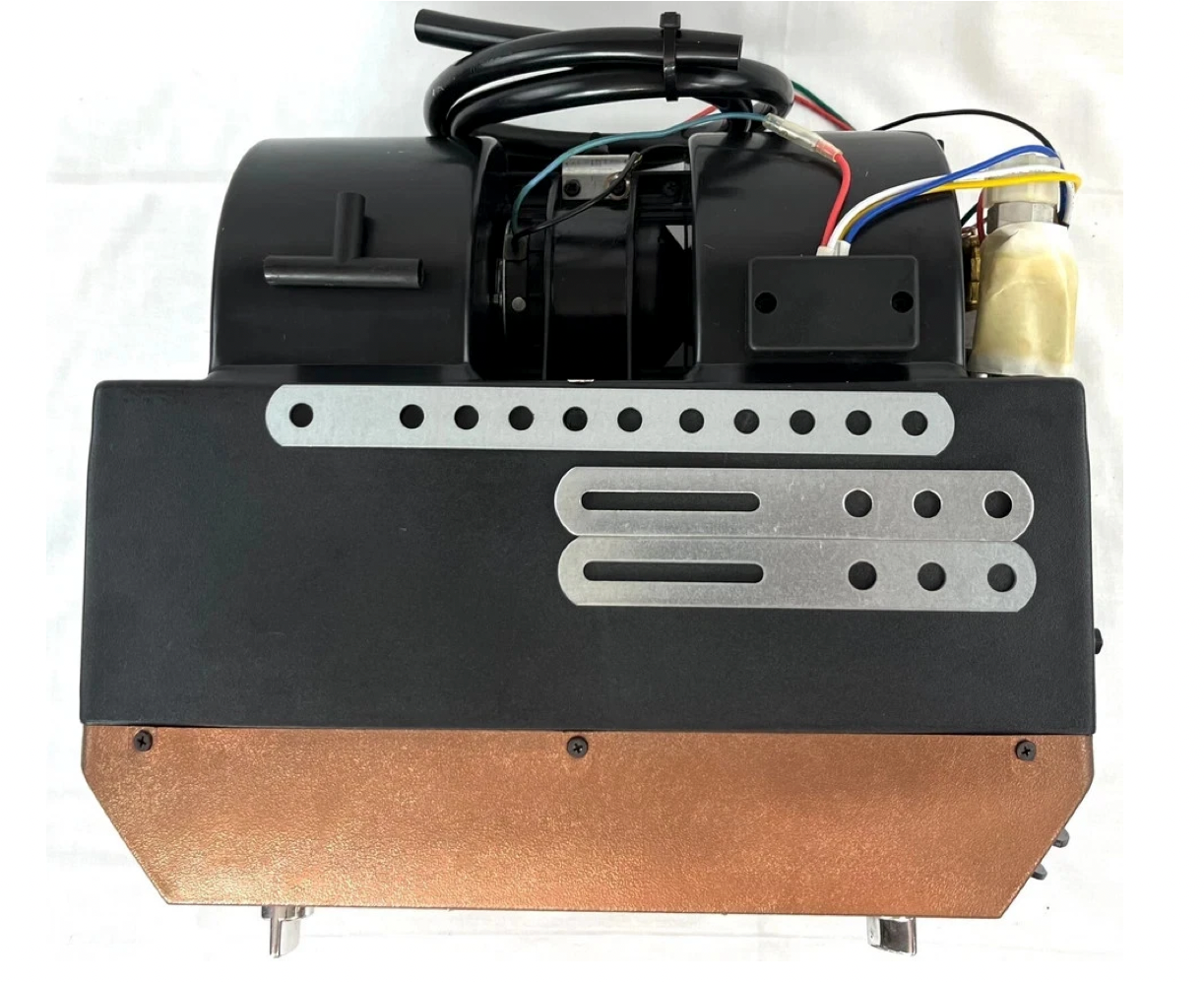

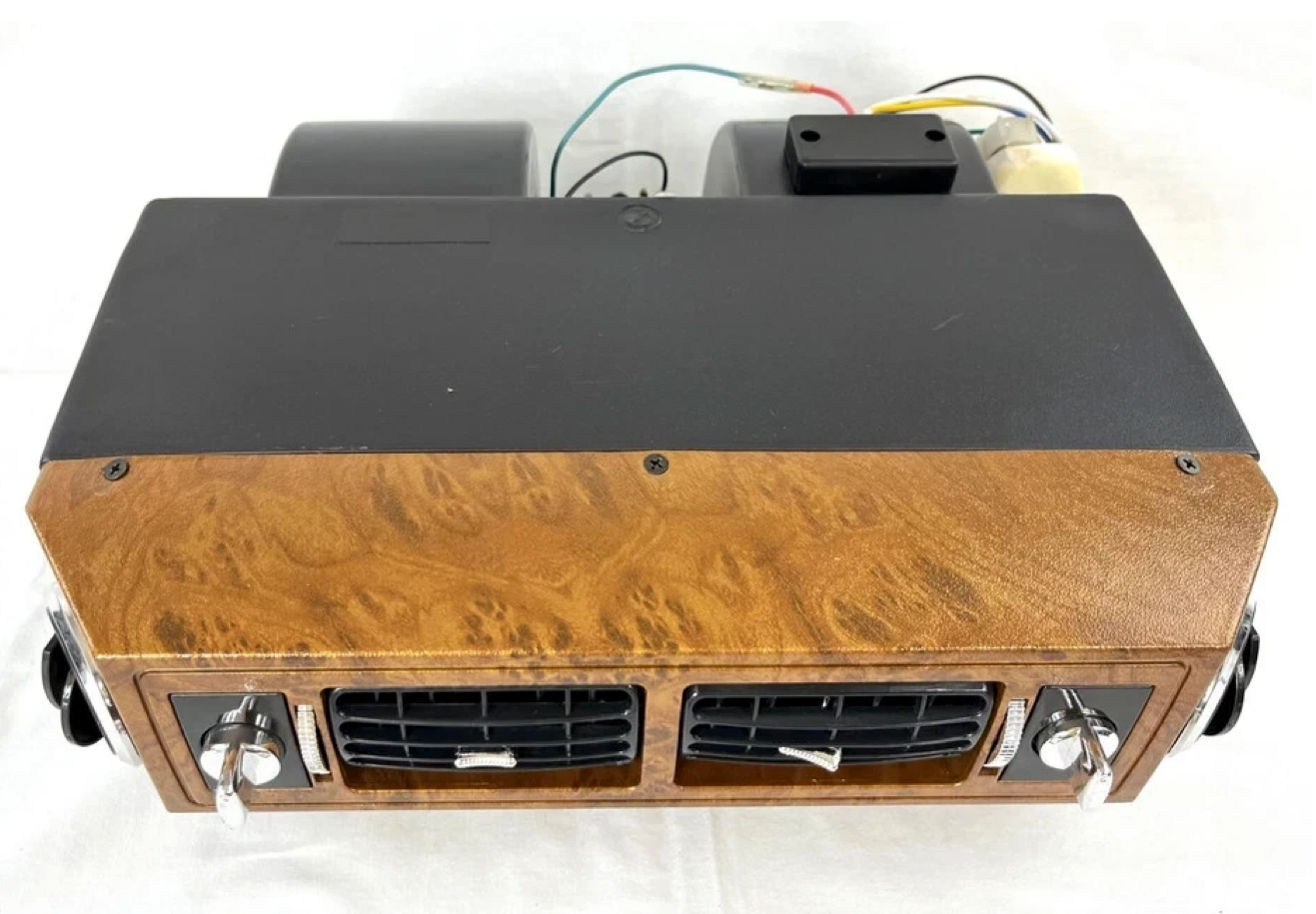

Universal Under-Dash Evaporator Unit

Model: E-432-100

Cool Only

32 pass 4way all aluminum coil

Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

12,700 BTU capacity 359 CFM

DIMENSIONS: L14½" X D12½" X H6"

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style  2A Groove Pulley 12v coil

Also available 8PK Pulley OR 100% ELECTRIC COMPRESSOR

100% Electric Compressor Available.

Contact us for SPECIAL ORDERS

Condenser

Model: CPF121620

PARALLEL FLOW (micro-tube technology)

12"H X 16"L .70"(20mm Core Depth)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 6' feet
• #8 13/32 = 4' feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message


Condenser Fan

Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL

727-687-6769

Located in Florida USA.

Nationwide FREE shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days.

NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
