24 VOLTS UNIVERSAL UNDER DASH EVAPORATOR 450A-000 RED CSL 24V Heat and Cool

🇺🇸 We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.🇺🇸

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

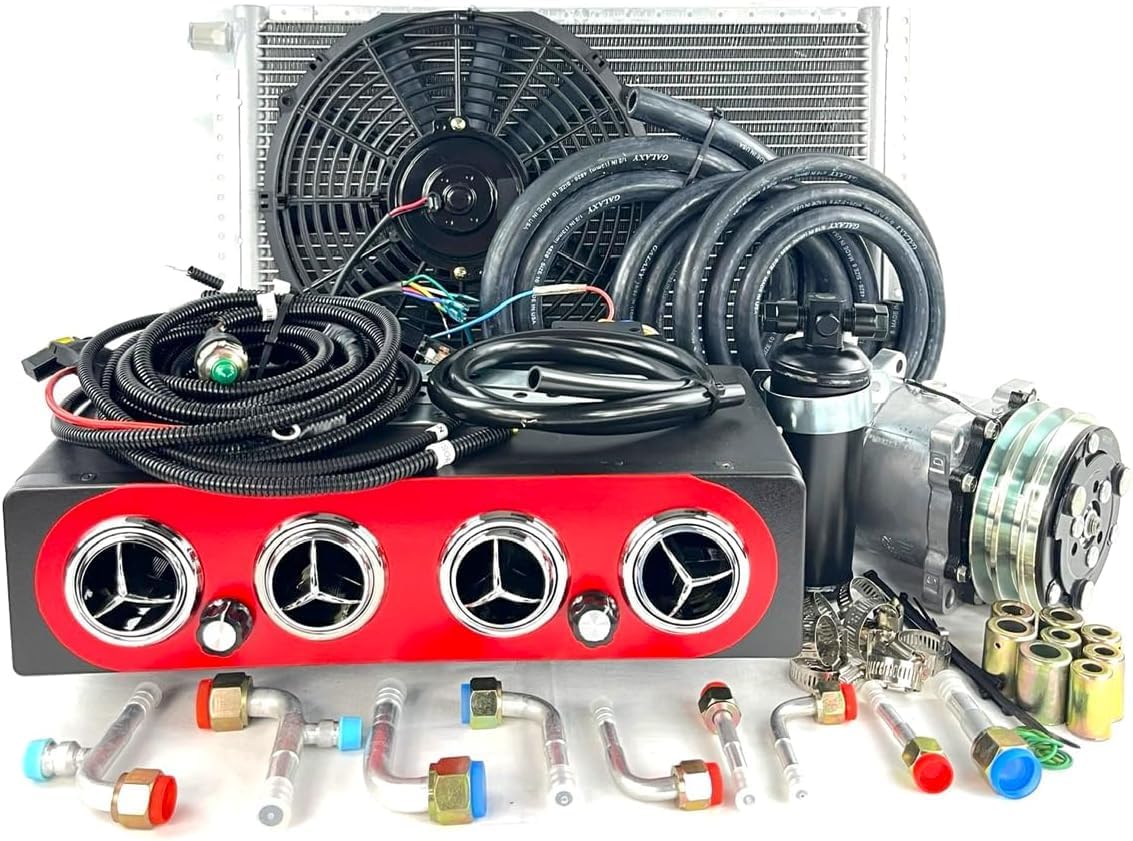

THE KIT INCLUDES:

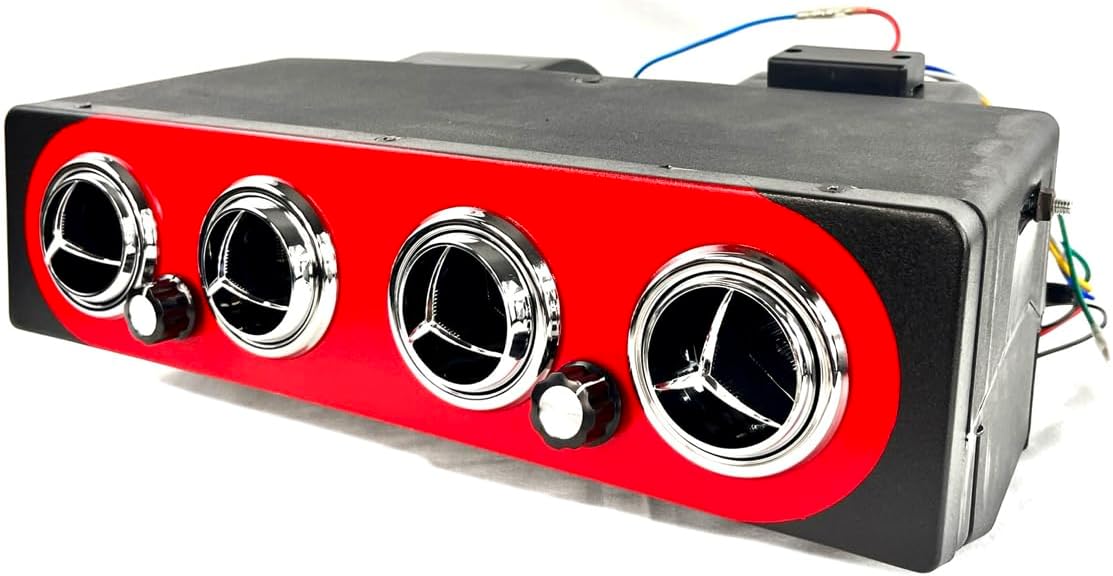

A/C KIT UNIVERSAL UNDERDASH 24V EVAPORATOR HEAT AND COOL MODEL 450-000 RED  CSL ELECTRICAL HARNESSRED WITH CHROME STAR LOUVERS

Model: E-450-000  Cool Only

36 pass 4way all aluminum coil Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch 1

24 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

22,220 BTU capacity 625 CFM

DIMENSIONS: L17" X D13½" X H6½"

FRONT 4 CHROME STARS ROUND LOUVERS

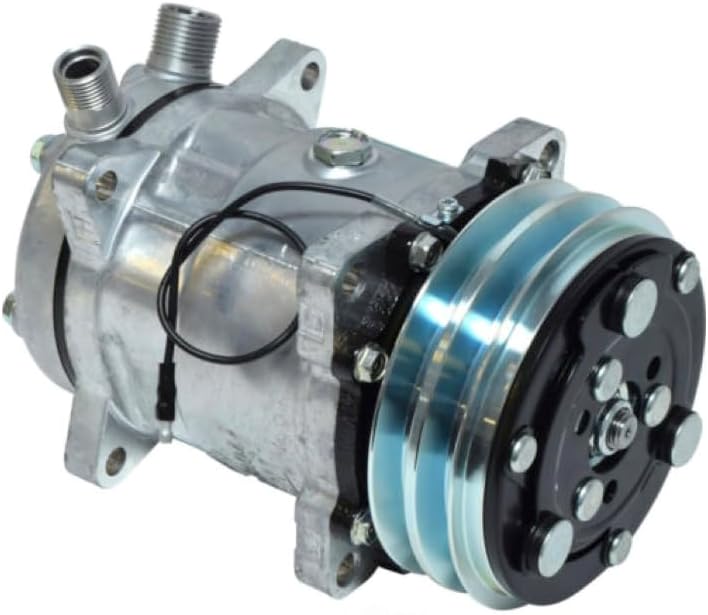

Compressor 24 VOLTS

Model: C5H142A12V SD508 5H14Sanden Style  2A Groove Pulley  coil Also available 8PK Pulley

100% Electric Compressor Available.

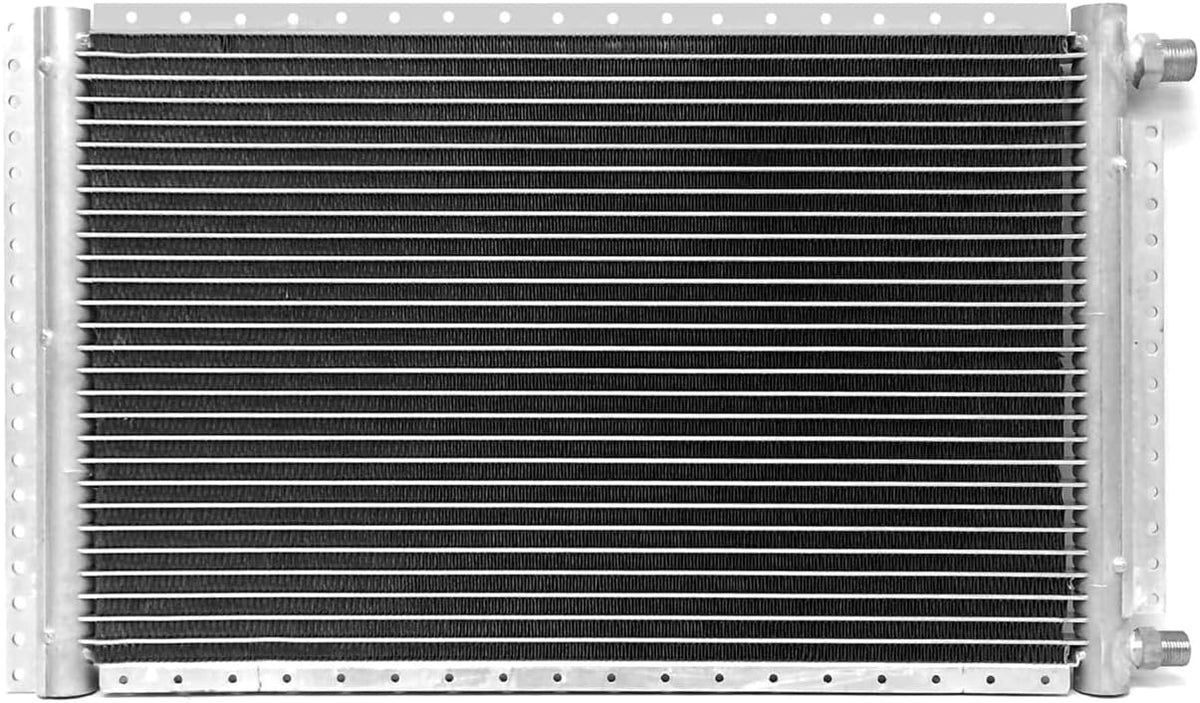

Condenser Model:

CPF142020 PARALLEL FLOW (micro-tube technology)

14"H X 20"L .75"(20 mm)W 4 Rails Aluminum#8 O-ring IN  #6 O-ring OUT

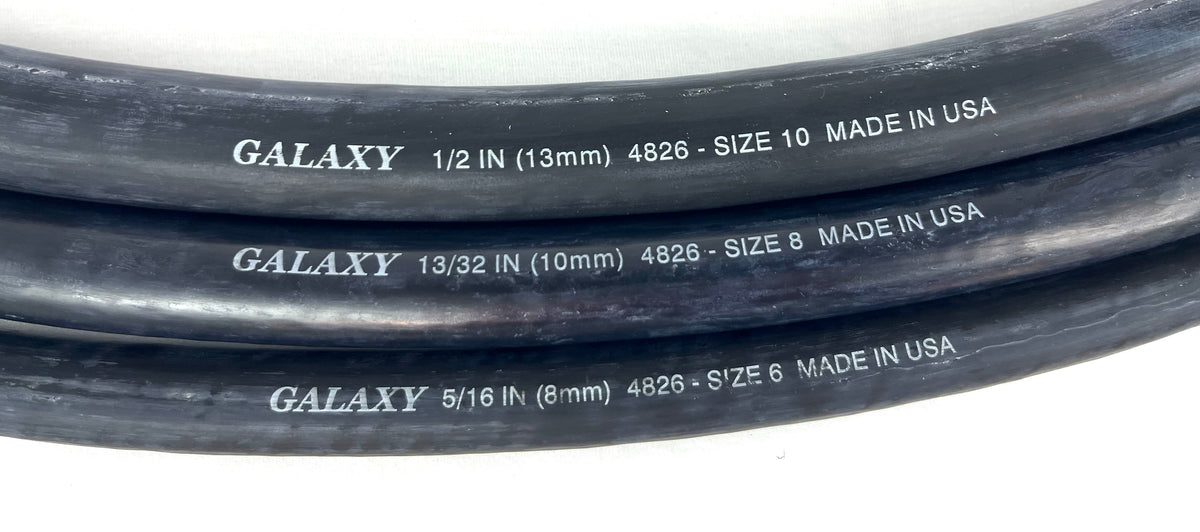

Hoses Set:

Model: H6516, H81332, H1012

 A/C HOSE STANDARD BARRIER

• #6 5/16 = 9'feet
• #8 13/32 = 5'feet
• #10 1/2 = 8' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

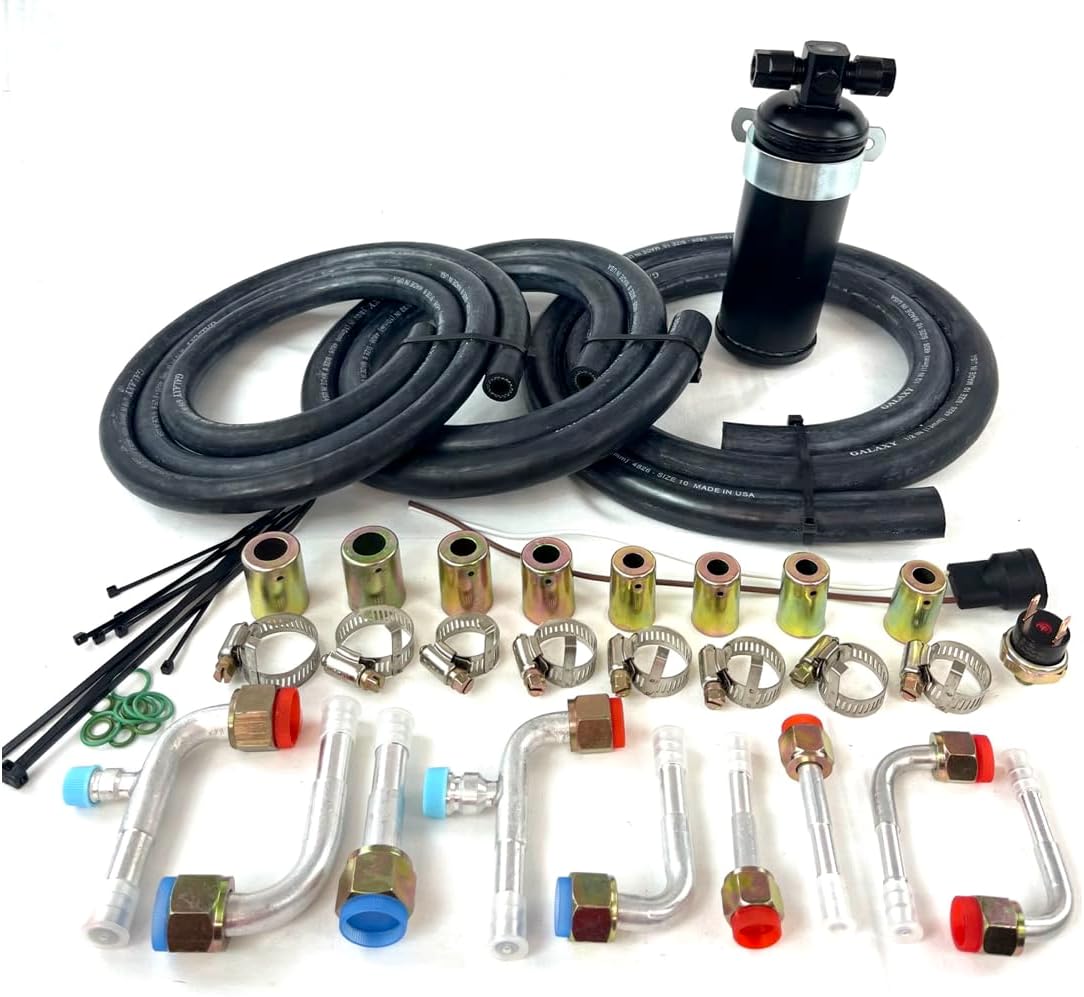

Fitting Set Model: FT SET 404

• 1-N° 10 90° O-ring Fitting w/R134a Service Port
• 1- N° 8 90° O-ring Fitting w/R134a Service Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems)O-ring set is included

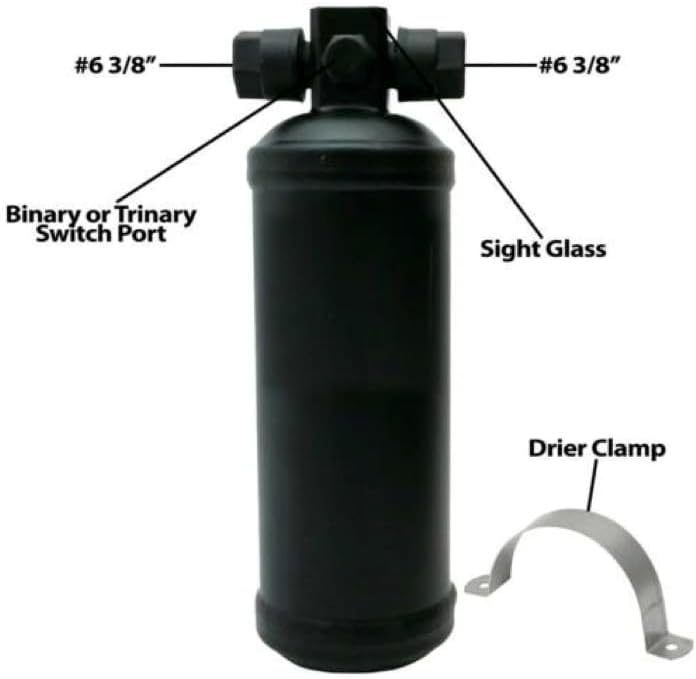

Filter Drier

Model: FD100A ALUMINUM

Model: FD100B BLACK

2½"Diameter 7½"Hight  Sight Glass

#6 ⅜ X ⅜ O-ring connections both sides

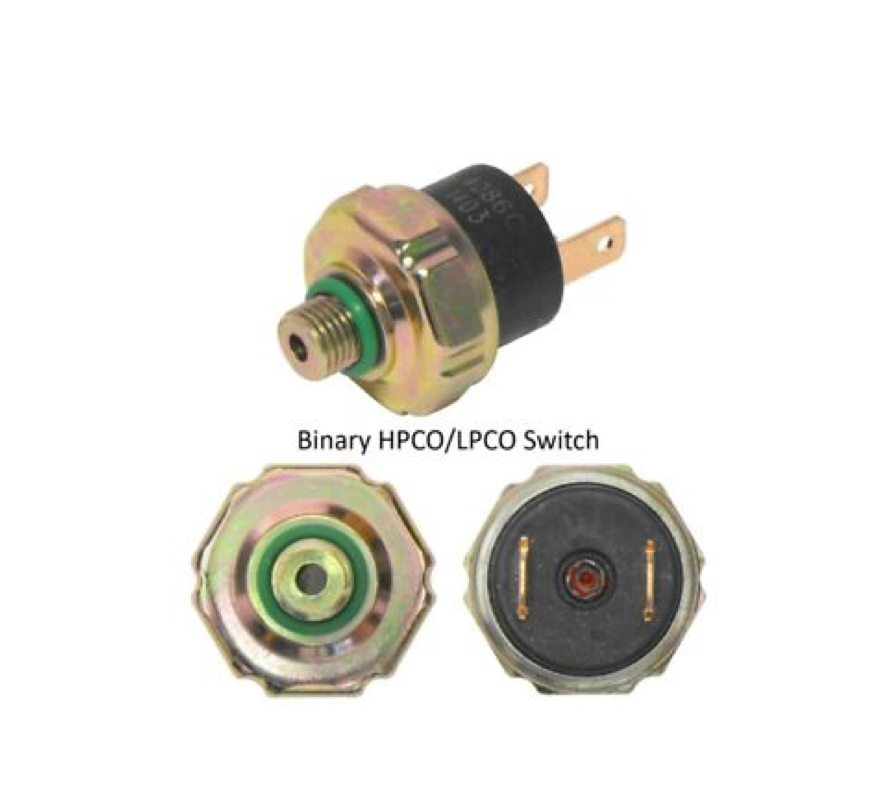

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)

 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

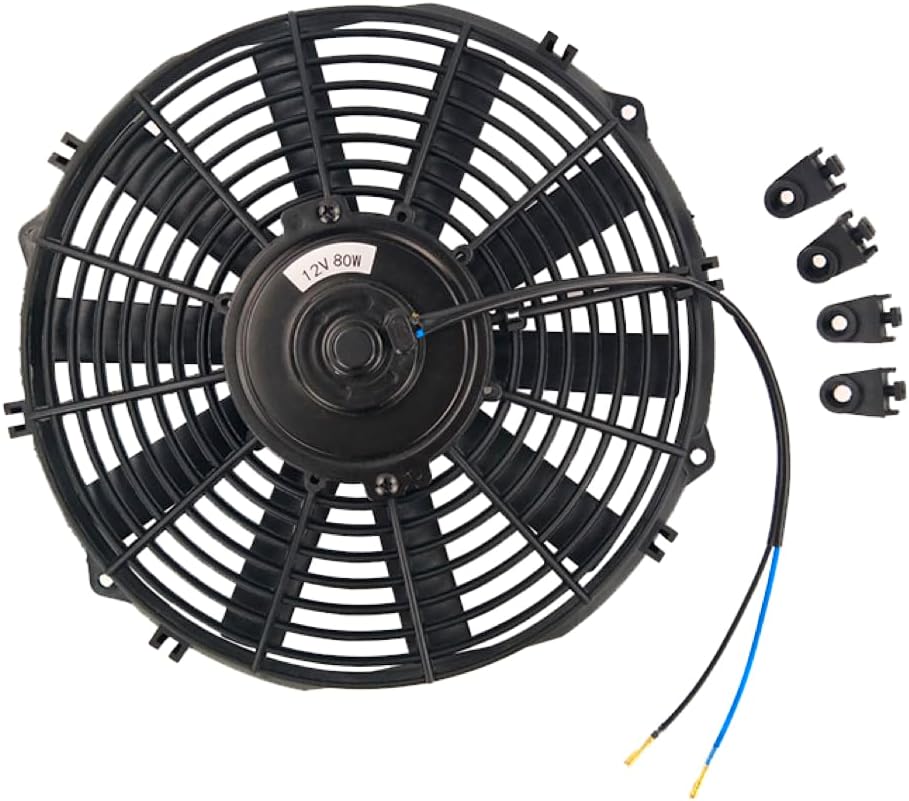

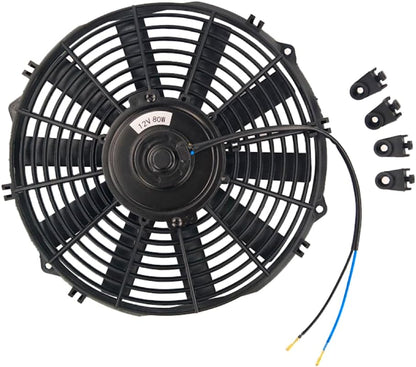

Condenser Fan

Model: CF1412

14" Diameter

24 Volts 80W 6 AMP

Reversible Puller or Pusher

4 Mounting Brackets included

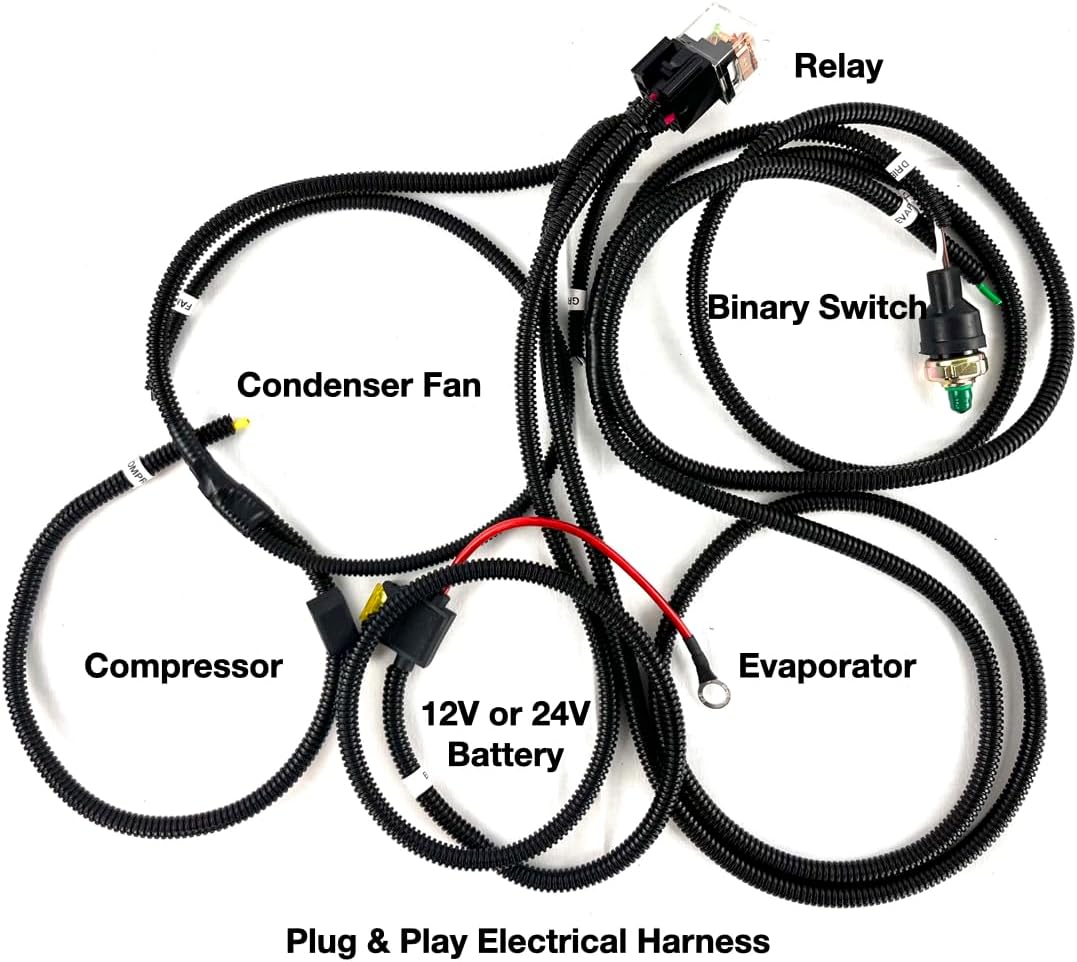

Electrical Harness all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision   SE HABLA ESPAÑOL Located in Florida USA. Nationwide FREE shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

 Return policy, this item can be returned in its original condition and package for a full refund or replacement within 14 days

NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
